Basic Configuration of a Talari Networks T510 SD-WAN Appliance

We started deploying Talari Networks Software Defined (SD)-WAN appliance in our branch networks, particularly the T510 appliance. Talari SD-WAN solution creates an "intelligent" network that helps adapt network environments with dual- or multi-WAN circuts. It goes beyond the traditional network failover setup (such as IP SLA and tracking) by performing intelligent network load balancing, packet duplication, and seamless routing. Here's a sample network architecture from Talari's website using the SD-WAN solution.

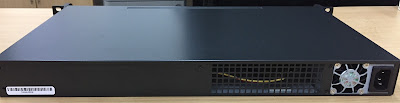

I recently configured a T510 appliance and below is the initial setup to be able to manage it. The USB, Console, MGT and Bypass ports are found in front panel. The power and serial number sticker are found at the back.



The box includes a null modem and I've used a USB-to-serial adapter on my PC and to connect to the CONSOLE port. You'll need to set the console baud rate to 115200 and the rest using the common terminal emulator settings (8-N-1-N).


There are two ways to initialize the T510 appliance: connect via console and issue CLI commands to set the management IP address or manually set your PC's static IP address to 192.168.0.1/24 and HTTPS to Talari's default IP address 192.168.0.2. I've used the CLI method and below are the bootup and configuration process.


[    0.385137] ACPI: Added _OSI(Module Device)
[    0.385960] ACPI: Added _OSI(Processor Device)
[    0.386958] ACPI: Added _OSI(3.0 _SCP Extensions)
[    0.387958] ACPI: Added _OSI(Processor Aggregator Device)
[    0.398047] ACPI: Executed 1 blocks of module-level executable AML code
[    0.409761] ACPI: Interpreter enabled
[    0.409953] ACPI: (supports S0 S5)
[    0.411960] ACPI: Using IOAPIC for interrupt routing
[    0.433164] HEST: Table parsing has been initialized.
[    0.433955] PCI: Using host bridge windows from ACPI; if necessary, use "pci=
nocrs" and report a bug
[    0.436618] ACPI: PCI Root Bridge [PCI0] (domain 0000 [bus 00-ff])
[    0.439349] pci_root PNP0A08:00: host bridge window [io  0x0000-0x0cf7]
[    0.439951] pci_root PNP0A08:00: host bridge window [io  0x0d00-0xffff]
[    0.440950] pci_root PNP0A08:00: host bridge window [mem 0x000a0000-0x000bffff]
[    0.441950] pci_root PNP0A08:00: host bridge window [mem 0x000d0000-0x000dffff]
[    0.442949] pci_root PNP0A08:00: host bridge window [mem 0x7f700000-0xdfffffff]
[    0.443949] pci_root PNP0A08:00: host bridge window [mem 0xf0000000-0xfed8ffff]
[    0.444949] pci_root PNP0A08:00: host bridge window [mem 0x400000000-0xfffffffff]
[    0.448860] pci 0000:00:1f.0: ICH7 LPC Generic IO decode 1 PIO at 02e0 (mask000f)
[    0.448951] pci 0000:00:1f.0: ICH7 LPC Generic IO decode 2 PIO at 03e0 (mask000f)
[    0.449950] pci 0000:00:1f.0: ICH7 LPC Generic IO decode 3 PIO at 1640 (mask000f)
[    0.450950] pci 0000:00:1f.0: ICH7 LPC Generic IO decode 4 PIO at 0ca0 (mask000f)
[    0.454969] pci 0000:00:1c.0: PCI bridge to [bus 01-01]
[    0.457966] pci 0000:00:1c.4: PCI bridge to [bus 02-02]
[    0.460965] pci 0000:00:1c.5: PCI bridge to [bus 03-03]
[    0.462035] pci 0000:00:1e.0: PCI bridge to [bus 04-04] (subtractive decode)
[    0.464788]  pci0000:00: Requesting ACPI _OSC control (0x1d)
[    0.466168]  pci0000:00: ACPI _OSC control (0x1d) granted
[    0.483845] ACPI: PCI Interrupt Link [LNKA] (IRQs 3 4 7 10 *11 12 14 15)
[    0.487083] ACPI: PCI Interrupt Link [LNKB] (IRQs 3 4 7 *10 11 12 14 15)
[    0.491454] ACPI: PCI Interrupt Link [LNKC] (IRQs 3 4 *7 10 11 12 14 15)
[    0.495070] ACPI: PCI Interrupt Link [LNKD] (IRQs 3 4 7 10 11 12 14 *15)
[    0.499449] ACPI: PCI Interrupt Link [LNKE] (IRQs 3 4 7 10 11 12 14 15) *0, disabled.
[    0.505075] ACPI: PCI Interrupt Link [LNKF] (IRQs 3 4 7 10 11 12 *14 15)
[    0.509450] ACPI: PCI Interrupt Link [LNKG] (IRQs 3 4 7 *10 11 12 14 15)
[    0.513068] ACPI: PCI Interrupt Link [LNKH] (IRQs 3 4 7 10 *11 12 14 15)
[    0.517498] vgaarb: device added: PCI:0000:00:02.0,decodes=io+mem,owns=io+mem,locks=none
[    0.517971] vgaarb: loaded
[    0.518936] vgaarb: bridge control possible 0000:00:02.0
[    0.520083] PCI: Using ACPI for IRQ routing
[    0.527819] Expanded resource reserved due to conflict with PCI Bus 0000:00
[    0.534346] pnp: PnP ACPI init
[    0.534955] ACPI: bus type pnp registered
[    0.537716] system 00:01: [mem 0xfed14000-0xfed19fff] has been reserved
[    0.537941] system 00:01: [mem 0xfed90000-0xfed93fff] has been reserved
[    0.542801] system 00:08: [io  0x164e-0x164f] has been reserved
[    0.546215] system 00:0a: [io  0x0a00-0x0a0f] has been reserved
[    0.547605] system 00:0b: [io  0x04d0-0x04d1] has been reserved
[    0.547938] system 00:0b: [io  0x0800-0x087f] has been reserved
[    0.548937] system 00:0b: [io  0x0480-0x04ff] could not be reserved
[    0.549937] system 00:0b: [mem 0xfed1c000-0xfed1ffff] has been reserved
[    0.550935] system 00:0b: [mem 0xfed20000-0xfed3ffff] has been reserved
[    0.551935] system 00:0b: [mem 0xfed40000-0xfed8ffff] has been reserved
[    0.553984] system 00:0d: [mem 0xfec00000-0xfec00fff] could not be reserved
[    0.554935] system 00:0d: [mem 0xfee00000-0xfee00fff] has been reserved
[    0.557007] system 00:0e: [mem 0xe0000000-0xefffffff] has been reserved
[    0.559486] system 00:0f: [mem 0x00000000-0x0009ffff] could not be reserved
[    0.559937] system 00:0f: [mem 0x000c0000-0x000cffff] could not be reserved
[    0.560934] system 00:0f: [mem 0x000e0000-0x000fffff] could not be reserved
[    0.561934] system 00:0f: [mem 0x00100000-0x7f6fffff] could not be reserved
[    0.562934] system 00:0f: [mem 0xfed90000-0xffffffff] could not be reserved
[    0.565107] pnp: PnP ACPI: found 16 devices
[    0.565929] ACPI: ACPI bus type pnp unregistered
[    0.576739] Switching to clocksource acpi_pm
[    0.577077] pci 0000:00:1c.5: BAR 15: assigned [mem 0x80000000-0x801fffff 64bit pref]
[    0.584993] pci 0000:00:1c.4: BAR 15: assigned [mem 0x80200000-0x803fffff 64bit pref]
[    0.592930] pci 0000:00:1c.0: BAR 15: assigned [mem 0x80400000-0x805fffff 64bit pref]
[    0.601116] pci 0000:01:00.0: BAR 7: can't assign mem (size 0x20000)
[    0.607574] pci 0000:01:00.0: BAR 10: can't assign mem (size 0x20000)
[    0.614116] pci 0000:01:00.1: BAR 7: can't assign mem (size 0x20000)
[    0.620572] pci 0000:01:00.1: BAR 10: can't assign mem (size 0x20000)
[    0.627093] pci 0000:00:1c.0: PCI bridge to [bus 01-01]
[    0.632400] pci 0000:00:1c.0:   bridge window [io  0xc000-0xcfff]
[    0.638575] pci 0000:00:1c.0:   bridge window [mem 0xfe900000-0xfe9fffff]
[    0.645448] pci 0000:00:1c.0:   bridge window [mem 0x80400000-0x805fffff 64bit pref]
[    0.653294] pci 0000:00:1c.4: PCI bridge to [bus 02-02]
[    0.658597] pci 0000:00:1c.4:   bridge window [io  0xd000-0xdfff]
[    0.664772] pci 0000:00:1c.4:   bridge window [mem 0xfea00000-0xfeafffff]
[    0.671639] pci 0000:00:1c.4:   bridge window [mem 0x80200000-0x803fffff 64bit pref]
[    0.679485] pci 0000:00:1c.5: PCI bridge to [bus 03-03]
[    0.684787] pci 0000:00:1c.5:   bridge window [io  0xe000-0xefff]
[    0.690964] pci 0000:00:1c.5:   bridge window [mem 0xfeb00000-0xfebfffff]
[    0.697836] pci 0000:00:1c.5:   bridge window [mem 0x80000000-0x801fffff 64bit pref]
[    0.705684] pci 0000:00:1e.0: PCI bridge to [bus 04-04]
[    0.711504] NET: Registered protocol family 2
[    0.716268] IP route cache hash table entries: 65536 (order: 7, 524288 bytes)

[    0.725152] TCP established hash table entries: 262144 (order: 10, 4194304 bytes)
[    0.735644] TCP bind hash table entries: 65536 (order: 8, 1048576 bytes)
[    0.743113] TCP: Hash tables configured (established 262144 bind 65536)
[    0.749828] TCP reno registered
[    0.753075] UDP hash table entries: 1024 (order: 3, 32768 bytes)
[    0.759210] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes)
[    0.765997] NET: Registered protocol family 1
[    0.771044] Unpacking initramfs...
[    0.945159] Freeing initrd memory: 3476k freed
[    0.953325] audit: initializing netlink socket (disabled)
[    0.958845] type=2000 audit(1479276512.957:1): initialized
[    1.003304] HugeTLB registered 2 MB page size, pre-allocated 0 pages
[    1.011208] VFS: Disk quotas dquot_6.5.2
[    1.015328] Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[    1.022074] msgmni has been set to 4003
[    1.026831] alg: No test for stdrng (krng)
[    1.031146] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253)
[    1.038657] io scheduler noop registered
[    1.042667] io scheduler deadline registered
[    1.047125] io scheduler cfq registered (default)
[    1.052943] APEI: Can not request iomem region <000000007f6b412a-000000007f6b412c> for GARs.
[    1.061564] [Firmware Warn]: GHES: Poll interval is 0 for generic hardware error source: 1,
disabled.
[    1.071104] GHES: APEI firmware first mode is enabled by WHEA _OSC.
[    1.077611] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[    1.104522] serial8250: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
[    1.131194] serial8250: ttyS1 at I/O 0x2f8 (irq = 3) is a 16550A
[    1.158266] 00:06: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
[    1.184605] 00:07: ttyS1 at I/O 0x2f8 (irq = 3) is a 16550A
[    1.190825] hpet_acpi_add: no address or irqs in _CRS
[    1.196214] i8042: PNP: No PS/2 controller found. Probing ports directly.
[    1.205975] serio: i8042 KBD port at 0x60,0x64 irq 1
[    1.211052] serio: i8042 AUX port at 0x60,0x64 irq 12
[    1.216539] mousedev: PS/2 mouse device common for all mice
[    1.222300] rtc_cmos 00:03: RTC can wake from S4
[    1.227198] rtc_cmos 00:03: rtc core: registered rtc_cmos as rtc0
[    1.233434] rtc0: alarms up to one month, y3k, 114 bytes nvram
[    1.239390] cpuidle: using governor ladder
[    1.243558] cpuidle: using governor menu
[    1.248540] TCP cubic registered
[    1.251844] NET: Registered protocol family 17
[    1.256371] Registering the dns_resolver key type
[    1.261260] libceph: loaded (mon/osd proto 15/24, osdmap 5/6 5/6)
[    1.267524] registered taskstats version 1
[    1.272719] rtc_cmos 00:03: setting system clock to 2016-11-16 06:08:34 UTC (
1479276514)
[    1.284682] Freeing unused kernel memory: 536k freed
[    1.290063] Write protecting the kernel read-only data: 6144k
[    1.308736] Freeing unused kernel memory: 1376k freed
[    1.319381] Freeing unused kernel memory: 496k freed
Loading, please wait...
[    1.346222] udevd[67]: starting version 175
[    1.408516] usbcore: registered new interface driver usbfs
[    1.429907] usbcore: registered new interface driver hub
[    1.435474] dca service started, version 1.12.1
[    1.449884] usbcore: registered new device driver usb
[    1.457851] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    1.466548] e1000e: Intel(R) PRO/1000 Network Driver - 2.3.2-k
[    1.474459] uhci_hcd: USB Universal Host Controller Interface driver
[    1.477195] ehci_hcd 0000:00:1a.7: EHCI Host Controller
[    1.477281] ehci_hcd 0000:00:1a.7: new USB bus registered, assigned bus number 1
[    1.477351] ehci_hcd 0000:00:1a.7: debug port 1
[    1.481311] ehci_hcd 0000:00:1a.7: irq 18, io mem 0xfe777c00
[    1.484037] e1000e: Copyright(c) 1999 - 2013 Intel Corporation.
[    1.484327] e1000e 0000:02:00.0: Interrupt Throttling Rate (ints/sec) set todynamic conservative mode
[    1.497872] ehci_hcd 0000:00:1a.7: USB 2.0 started, EHCI 1.00
[    1.497937] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002
[    1.497945] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.497952] usb usb1: Product: EHCI Host Controller
[    1.497958] usb usb1: Manufacturer: Linux 3.2.57-t510v1 ehci_hcd
[    1.497963] usb usb1: SerialNumber: 0000:00:1a.7
[    1.498345] hub 1-0:1.0: USB hub found
[    1.498360] hub 1-0:1.0: 6 ports detected
[    1.498574] ehci_hcd 0000:00:1d.7: EHCI Host Controller
[    1.498599] ehci_hcd 0000:00:1d.7: new USB bus registered, assigned bus number 2
[    1.498679] ehci_hcd 0000:00:1d.7: debug port 1
[    1.502645] ehci_hcd 0000:00:1d.7: irq 23, io mem 0xfe777800
[    1.512144] ehci_hcd 0000:00:1d.7: USB 2.0 started, EHCI 1.00
[    1.512214] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002
[    1.512222] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.512228] usb usb2: Product: EHCI Host Controller
[    1.512234] usb usb2: Manufacturer: Linux 3.2.57-t510v1 ehci_hcd
[    1.512240] usb usb2: SerialNumber: 0000:00:1d.7
[    1.512564] hub 2-0:1.0: USB hub found
[    1.512580] hub 2-0:1.0: 6 ports detected
[    1.593801] e1000e 0000:02:00.0: eth0: (PCI Express:2.5GT/s:Width x1) 0c:c4:7a:85:76:86
[    1.593809] e1000e 0000:02:00.0: eth0: Intel(R) PRO/1000 Network Connection
[    1.593898] e1000e 0000:02:00.0: eth0: MAC: 3, PHY: 8, PBA No: 0101FF-0FF
[    1.594223] e1000e 0000:03:00.0: Interrupt Throttling Rate (ints/sec) set todynamic conservative mode
[    1.666257] uhci_hcd 0000:00:1a.0: UHCI Host Controller
[    1.676195] igb: Intel(R) Gigabit Ethernet Network Driver - version 5.0.5-k
[    1.678319] uhci_hcd 0000:00:1a.0: new USB bus registered, assigned bus number 3
[    1.678434] uhci_hcd 0000:00:1a.0: irq 16, io base 0x0000b880
[    1.678587] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001
[    1.678597] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.678604] usb usb3: Product: UHCI Host Controller
[    1.678611] usb usb3: Manufacturer: Linux 3.2.57-t510v1 uhci_hcd
[    1.678618] usb usb3: SerialNumber: 0000:00:1a.0
[    1.679105] hub 3-0:1.0: USB hub found
[    1.679126] hub 3-0:1.0: 2 ports detected
[    1.679339] uhci_hcd 0000:00:1a.1: UHCI Host Controller
[    1.679370] uhci_hcd 0000:00:1a.1: new USB bus registered, assigned bus number 4
[    1.679472] uhci_hcd 0000:00:1a.1: irq 21, io base 0x0000b800
[    1.679605] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001
[    1.679614] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.679622] usb usb4: Product: UHCI Host Controller
[    1.679628] usb usb4: Manufacturer: Linux 3.2.57-t510v1 uhci_hcd
[    1.679635] usb usb4: SerialNumber: 0000:00:1a.1
[    1.680073] hub 4-0:1.0: USB hub found
[    1.680092] hub 4-0:1.0: 2 ports detected
[    1.680303] uhci_hcd 0000:00:1a.2: UHCI Host Controller
[    1.680333] uhci_hcd 0000:00:1a.2: new USB bus registered, assigned bus number 5
[    1.680441] uhci_hcd 0000:00:1a.2: irq 19, io base 0x0000b480
[    1.680587] usb usb5: New USB device found, idVendor=1d6b, idProduct=0001
[    1.680596] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.680604] usb usb5: Product: UHCI Host Controller
[    1.680611] usb usb5: Manufacturer: Linux 3.2.57-t510v1 uhci_hcd
[    1.680618] usb usb5: SerialNumber: 0000:00:1a.2
[    1.681078] hub 5-0:1.0: USB hub found
[    1.681099] hub 5-0:1.0: 2 ports detected
[    1.681352] uhci_hcd 0000:00:1d.0: UHCI Host Controller
[    1.681385] uhci_hcd 0000:00:1d.0: new USB bus registered, assigned bus number 6
[    1.681449] uhci_hcd 0000:00:1d.0: irq 23, io base 0x0000b400
[    1.681584] usb usb6: New USB device found, idVendor=1d6b, idProduct=0001
[    1.681593] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.681601] usb usb6: Product: UHCI Host Controller
[    1.681607] usb usb6: Manufacturer: Linux 3.2.57-t510v1 uhci_hcd
[    1.681614] usb usb6: SerialNumber: 0000:00:1d.0
[    1.682054] hub 6-0:1.0: USB hub found
[    1.682072] hub 6-0:1.0: 2 ports detected
[    1.682282] uhci_hcd 0000:00:1d.1: UHCI Host Controller
[    1.682314] uhci_hcd 0000:00:1d.1: new USB bus registered, assigned bus number 7
[    1.682375] uhci_hcd 0000:00:1d.1: irq 19, io base 0x0000b080
[    1.682519] usb usb7: New USB device found, idVendor=1d6b, idProduct=0001
[    1.682529] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.682537] usb usb7: Product: UHCI Host Controller
[    1.682544] usb usb7: Manufacturer: Linux 3.2.57-t510v1 uhci_hcd
[    1.682551] usb usb7: SerialNumber: 0000:00:1d.1
[    1.682971] hub 7-0:1.0: USB hub found
[    1.682987] hub 7-0:1.0: 2 ports detected
[    1.683239] uhci_hcd 0000:00:1d.2: UHCI Host Controller
[    1.683267] uhci_hcd 0000:00:1d.2: new USB bus registered, assigned bus number 8
[    1.683328] uhci_hcd 0000:00:1d.2: irq 18, io base 0x0000b000
[    1.683452] usb usb8: New USB device found, idVendor=1d6b, idProduct=0001
[    1.683460] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    1.683467] usb usb8: Product: UHCI Host Controller
[    1.683474] usb usb8: Manufacturer: Linux 3.2.57-t510v1 uhci_hcd
[    1.683480] usb usb8: SerialNumber: 0000:00:1d.2
[    1.683869] hub 8-0:1.0: USB hub found
[    1.683887] hub 8-0:1.0: 2 ports detected
[    1.704913] e1000e 0000:03:00.0: eth1: (PCI Express:2.5GT/s:Width x1) 0c:c4:7a:85:76:87
[    1.704922] e1000e 0000:03:00.0: eth1: Intel(R) PRO/1000 Network Connection
[    1.705055] e1000e 0000:03:00.0: eth1: MAC: 3, PHY: 8, PBA No: 0101FF-0FF
[    2.040669] igb: Copyright (c) 2007-2013 Intel Corporation.
[    2.054982] SCSI subsystem initialized
[    2.072573] ahci: SSS flag set, parallel bus scan disabled
[    2.078227] ahci 0000:00:1f.2: AHCI 0001.0200 32 slots 6 ports 3 Gbps 0x3f impl SATA mode
[    2.086534] ahci 0000:00:1f.2: flags: 64bit ncq sntf stag pm led clo pio slumpart ccc ems sxs
[    2.106256] scsi0 : ahci
[    2.109231] scsi1 : ahci
[    2.112078] scsi2 : ahci
[    2.114883] scsi3 : ahci
[    2.117699] scsi4 : ahci
[    2.120510] scsi5 : ahci
[    2.123610] ata1: SATA max UDMA/133 abar m2048@0xfe777000 port 0xfe777100 irq 58
[    2.131114] ata2: SATA max UDMA/133 abar m2048@0xfe777000 port 0xfe777180 irq 58
[    2.138608] ata3: SATA max UDMA/133 abar m2048@0xfe777000 port 0xfe777200 irq 58
[    2.146102] ata4: SATA max UDMA/133 abar m2048@0xfe777000 port 0xfe777280 irq 58
[    2.153598] ata5: SATA max UDMA/133 abar m2048@0xfe777000 port 0xfe777300 irq 58
[    2.161096] ata6: SATA max UDMA/133 abar m2048@0xfe777000 port 0xfe777380 irq 58
[    2.209576] igb 0000:01:00.0: Intel(R) Gigabit Ethernet Network Connection
[    2.217221] igb 0000:01:00.0: eth2: (PCIe:2.5Gb/s:Width x4) 00:0c:bd:0a:6c:39

[    2.224505] igb 0000:01:00.0: eth2: PBA No: Unknown
[    2.229472] igb 0000:01:00.0: Using MSI-X interrupts. 4 rx queue(s), 4 tx queue(s)
[    2.399152] igb 0000:01:00.1: Intel(R) Gigabit Ethernet Network Connection
[    2.406118] igb 0000:01:00.1: eth3: (PCIe:2.5Gb/s:Width x4) 00:0c:bd:0a:6c:38

[    2.413338] igb 0000:01:00.1: eth3: PBA No: Unknown
[    2.418291] igb 0000:01:00.1: Using MSI-X interrupts. 4 rx queue(s), 4 tx queue(s)
[    2.473049] ata1: SATA link up 3.0 Gbps (SStatus 123 SControl 300)
[    2.480171] ata1.00: ATA-9: KINGSTON SKC400S37128G, SAFM00.Y, max UDMA/133
[    2.487128] ata1.00: 250069680 sectors, multi 16: LBA48 NCQ (depth 31/32), AA

[    2.494523] ata1.00: configured for UDMA/133
[    2.499195] scsi 0:0:0:0: Direct-Access     ATA      KINGSTON SKC400S SAFM PQ: 0 ANSI: 5
[    2.812044] ata2: SATA link down (SStatus 0 SControl 300)
[    3.122041] ata3: SATA link down (SStatus 0 SControl 300)
[    3.432046] ata4: SATA link down (SStatus 0 SControl 300)
[    3.742042] ata5: SATA link down (SStatus 0 SControl 300)
[    4.052040] ata6: SATA link down (SStatus 0 SControl 300)
[    4.073765] sd 0:0:0:0: [sda] 250069680 512-byte logical blocks: (128 GB/119GiB)
[    4.081606] sd 0:0:0:0: [sda] Write Protect is off
[    4.086582] sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[    4.097901]  sda: sda1 sda2 sda3 sda4 < sda5 sda6 >
[    4.104259] sd 0:0:0:0: [sda] Attached SCSI disk
Begin: Loading essential drivers ... done.
Begin: Running /scripts/init-premount ... done.
Begin: Mounting root file system ... Begin: Running /scripts/local-top ... done.

Begin: Running /scripts/local-premount ... done.
[    4.332385] kjournald starting.  Commit interval 5 seconds
[    4.332443] EXT3-fs (sda2): mounted filesystem with ordered data mode
Begin: Running /scripts/local-bottom ... done.
done.
Begin: Running /scripts/init-bottom ... done.
INIT: version 2.88 booting
[....] Starting the hotplug events dispatcher: udevd[    4.911603] udevd[355]: s
tarting version 175
. ok
^[[?1;2c[....] ^[[?1;2cSynthesizing the initial hotplug events...[    5.066709]
input: Power Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input0
[    5.082593] ACPI: Power Button [PWRB]
[    5.088328] input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input1
[    5.099655] ACPI: Power Button [PWRF]
[    5.156974] iTCO_vendor_support: vendor-support=0
[    5.157070] udevd[438]: renamed network interface eth0 to tn-wa0
^[[?1;2c[    5.170093] iTCO_wdt: Intel TCO WatchDog Timer Driver v1.07
[    5.172931] udevd[423]: renamed network interface eth3 to tn-wbp0
done.
[    5.188984] udevd[415]: renamed network interface eth2 to tn-lbp0
[    5.189719] iTCO_wdt: Found a ICH9R TCO device (Version=2, TCOBASE=0x0860)
[    5.189906] iTCO_wdt: initialized. heartbeat=30 sec (nowayout=0)
^[[?1;2c[    5.211948] udevd[385]: renamed network interface eth1 to tn-mgt0
[....] Waiting for /dev to be fully populated...done.
^[[?1;2c^[[?1;2c[....] Setting preliminary keymap...done.
^[[?1;2c^[[?1;2c[....] Setting parameters of disc: (none). ok ^[[?1;2c
^[[?1;2c[....] Activating swap...[    6.362317] Adding 1028152k swap on /dev/sda
5.  Priority:-1 extents:1 across:1028152k SS
done.
^[[?1;2c[....] Checking root file system...fsck from util-linux 2.20.1
e2fsck 1.42.5 (29-Jul-2012)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
Primary_OS: 53314/262944 files (0.8% non-contiguous), 404219/1050249 blocks
done.
[   10.032451] EXT3-fs (sda2): using internal journal
^[[?1;2c^[[?1;2c[....] Cleaning up temporary files... /tmp. ok
^[[?1;2c^[[?1;2c[....] Activating lvm and md swap...done.
[....] ^[[?1;2c^[[?1;2c^[[?1Checking file systems...;2cfsck from util-linux 2.20.1

Debian GNU/Linux 7 talari ttyS0

talari login: talariuser    // DEFAULT LOGIN
Password: talari
Linux talari 3.2.57-t510v1 #1 SMP PREEMPT Mon Dec 8 18:23:19 EST 2014 x86_64
======================================================================

        Talari Operating System 4.4 on T510v1
        Host IP = 192.168.0.2     // DEFAULT MANAGEMENT IP (/24)

======================================================================
talariuser@Talari-T510:~# tcon      // TALARI CONSOLE; TO INITIALIZE MGT IP
Console to Talari acquired

>management_ip

IP Address:             192.168.0.2
Subnet Mask:            255.255.255.0
Gateway IP Address:     (Not configured)

Which would you like to do?
        "set interface <ip address> <subnet mask> <gateway>" - Stage New Setting
s for IP Address, Subnet Mask, and Gateway IP Address
        "address" - Stage New IP Address
        "mask" - Stage New Subnet Mask
        "gateway" - Stage New Gateway IP Address
        "clear" - Clear Settings
        "apply" - Apply Staged Settings
        "cancel" - Cancel Staged Settings
        "main_menu" - Return to the Main Menu

set_management_ip>set interface 172.27.148.31 255.255.255.192 172.27.148.1
Management Interface settings have been staged.
Enter "apply" to make the settings take effect.

The following changes have been staged:

IP Address:             172.27.148.31
Subnet Mask:            255.255.255.192
Gateway IP Address:     172.27.148.1


IP Address:             192.168.0.2
Subnet Mask:            255.255.255.0
Gateway IP Address:     (Not configured)

Which would you like to do?
        "set interface <ip address> <subnet mask> <gateway>" - Stage New Setting
s for IP Address, Subnet Mask, and Gateway IP Address
        "address" - Stage New IP Address
        "mask" - Stage New Subnet Mask
        "gateway" - Stage New Gateway IP Address
        "clear" - Clear Settings
        "apply" - Apply Staged Settings
        "cancel" - Cancel Staged Settings
        "main_menu" - Return to the Main Menu

set_management_ip>apply

Are you sure you want to change your Management Interface IP settings?
You may lose connectivity to the appliance. <y/n>?
y
kill: invalid option -- '9'

Usage:
 kill [options] <pid> [...]

Options:
 <pid> [...]            send signal to every <pid> listed
 -<signal>, -s, --signal <signal>
                        specify the <signal> to be sent
 -l, --list=[<signal>]  list all signal names, or convert one to a name
 -L, --table            list all signal names in a nice table

 -h, --help     display this help and exit
 -V, --version  output version information and exit

For more details see kill(1).
/home/talariuser/os_config/network_interfaces/tn-mgt0:1: interface tn-mgt0 decla
red allow-auto twice
/home/talariuser/os_config/network_interfaces/tn-mgt0:1: interface tn-mgt0 decla
red allow-auto twice
Cannot find device "tn-mgt1"
/home/talariuser/os_config/network_interfaces/tn-mgt0:1: interface tn-mgt0 decla
red allow-auto twice

IP Address:             172.27.148.31
Subnet Mask:            255.255.255.192
Gateway IP Address:     172.27.148.1

Which would you like to do?
        "set interface <ip address> <subnet mask> <gateway>" - Stage New Setting
s for IP Address, Subnet Mask, and Gateway IP Address
        "address" - Stage New IP Address
        "mask" - Stage New Subnet Mask
        "gateway" - Stage New Gateway IP Address
        "clear" - Clear Settings
        "apply" - Apply Staged Settings
        "cancel" - Cancel Staged Settings
        "main_menu" - Return to the Main Menu

set_management_ip>


You could now HTTPS to the T510 appliance using the new management IP address and default login talariuser and password talari.



Choose Advanced Config and Client.



To view and configure interfaces, go to Manage Appliance > Ethernet Interface Settings.



After typing the settings (DNS in this case) click Change Settings. I also changed the MGT port speed to 100 Mbps (uncheck Speed) since we have a switches supporting both Gigabit Ethernet and 100 Mbps Ethernet ports.





To change the time or sync the appliance to an NTP server, go to Manage Appliance > Date and Time Settings. There’s a default NTP server configured (time.nst.gov) and I just chose UTC for the Time Zone.


To add or change local admin accounts, go to Manage Appliance > Users / Authentication.





To get a snapshot of the device info (for troubleshooting and support purposes) such as OS version, serial number and interface MAC addresses, go to Diagnose > System Info.
