Here are some caveats when cofiguring a Cisco 1100 LTE Advanced ISR series router.
Overview of Cisco 4G LTE Advanced
Cisco 4G LTE supports the following 4G/3G modes:
• 4G LTE —4G LTE mobile specification provides multi-megabit bandwidth, more efficient radio network, latency reduction, and improved mobility. LTE solutions target new cellular networks. These networks initially support up to 300 Mb/s peak rates in the downlink and up to 50 Mb/s peak rates in the uplink. The throughput of these networks is higher than the existing 3G networks.
• 3G Evolution High-Speed Packet Access (HSPA/HSPA+) —HSPA is a UMTS-based 3G network. It supports High-Speed Downlink Packet Access (HSDPA) and High-Speed Uplink Packet Access (HSUPA) data for improved download and upload speeds. Evolution High-Speed Packet Access (HSPA+) supports Multiple Input/Multiple Output (MIMO) antenna capability.
Prerequisites for Configuring Cisco 4G LTE Advanced
• If the signal is not good at the router, use the Cisco offered antenna accessories and extension cables to place the antenna away from router in a better coverage area.
• You must have 4G LTE network coverage where your router is physically placed.
• You must subscribe to a service plan with a wireless service provider and obtain a Subscriber Identity Module (SIM) card. Only micro SIM is supported.
• You must install the SIM card before configuring the 4G LTE or Cisco C1100 series router.
• The standalone antenna that supports GPS capabilities must be installed for the GPS feature to work. See the Cisco 4G Indoor/Outdoor Active GPS Antenna (GPS-ACT-ANTM-SMA) document for installation information.
Restrictions for Configuring Cisco 4G LTE Advanced
• Currently, cellular networks support only user initiated bearer establishment.
• Due to the shared nature of wireless communications, the experienced throughput varies depending on the number of active users or congestion in a given network.
• Cellular networks have higher latency compared to wired networks. Latency rates depend on the technology and carrier. Latency also depends on the signal conditions and can be higher because of network congestion.
• CDMA-EVDO, CDMA-1xRTT, and GPRS technology modes are not supported.
• Any restrictions that are part of the terms of service from your carrier.
• SMS—Only one text message up to 160 characters to one recipient at a time is supported. Larger texts are automatically truncated to the proper size before being sent.
• It is strongly recommended that you configure SNMP V3 with authentication/privacy.
The following features are not supported on Cisco 4G LTE Advanced C1100 Series ISR, when compared to Classic IOS:
• TTY support or Line
• Chat script/dialer string
• External Dialer
• DM log output to USB flash is not supported.

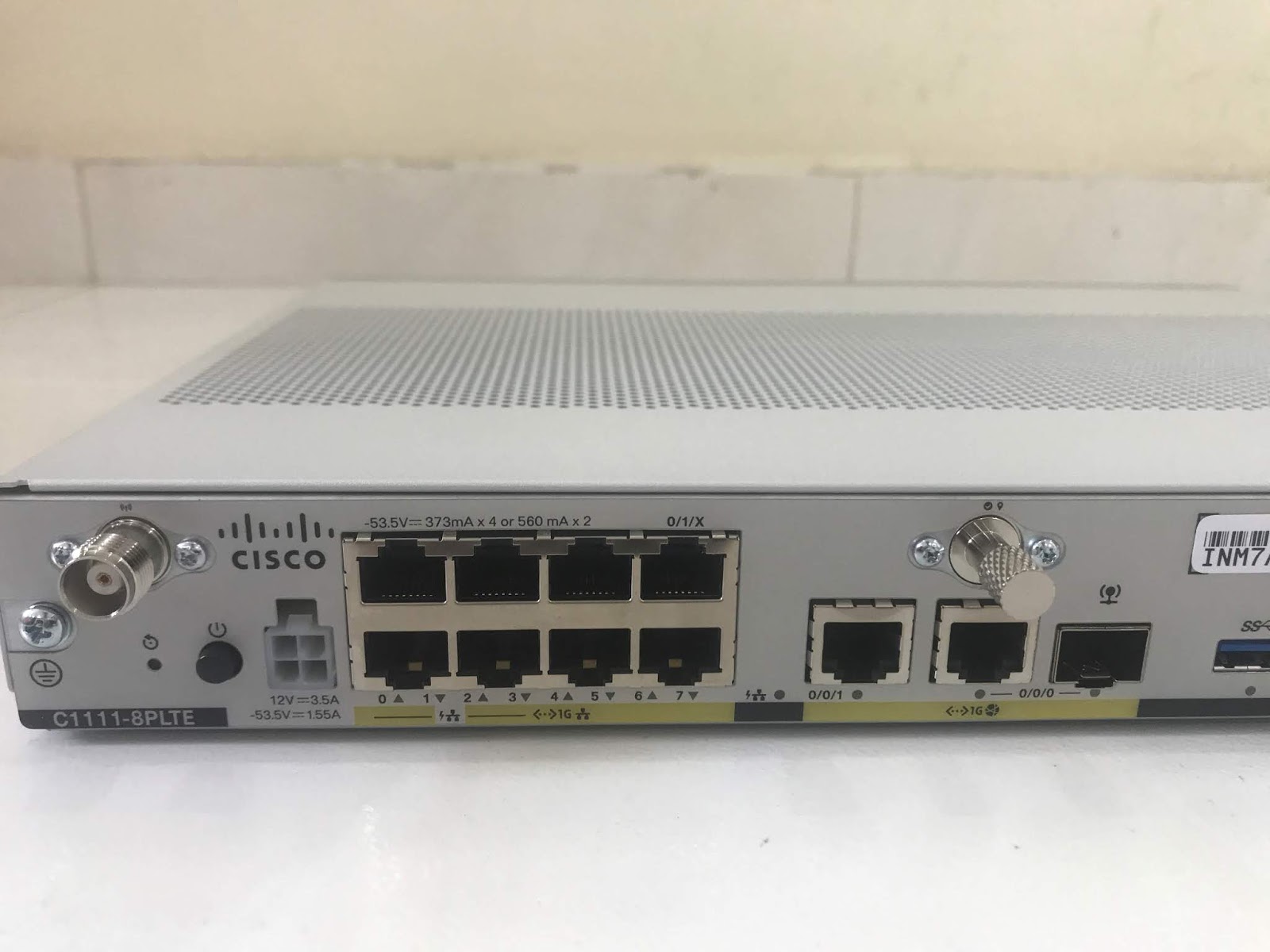

Below are the photos (front and back) of a C1111-8PLTELA router. It uses an off-white/metallic chassis which is similar to the new Cisco Firepower 2100 and WLC 3504.
It has a built-in 8-port switch (Layer 2 only), two Gig ports (Layer 3): G0/0/0 (has an option for fiber SFP) and G0/0/1 (copper-only) and two LTE antenna.
You can use a flat screw driver to open the SIM card slot cover.
Below are the initial bootup and running-config. The LTE Advanced router uses an IOS-XE software (Linux Kernel). The interfaces GigabitEthernet0/0/0 and Cellular0/2/0 are enabled by default. It also uses Cisco Smart Licensing (CSL).
Rom image verified correctly
System Bootstrap, Version 16.9(1r), RELEASE SOFTWARE
Copyright (c) 1994-2018 by cisco Systems, Inc.
Current image running: Boot ROM0
Last reset cause: PowerOn
C1111-8PLTELA platform with 4194304 Kbytes of main memory
........
no valid BOOT image found
Final autoboot attempt from default boot device...
Located throughput_monitor_params
#
Unsupported package header version (-1347440721)
Located c1100-universalk9_ias.16.10.01b.SPA.bin
################################################################
<OUTPUT TRUNCATED>
################################################################
Package header rev 3 structure detected
IsoSize = 484581376
Calculating SHA-1 hash...Validate package: SHA-1 hash:
calculated 471FE7F1:7BD648C4:DD9EA59C:D7EA6B94:F6CF1438
expected 471FE7F1:7BD648C4:DD9EA59C:D7EA6B94:F6CF1438
RSA Signed RELEASE Image Signature Verification Successful
Image validated
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software [Gibraltar], ISR Software (ARMV8EL_LINUX_IOSD-UNIVERSALK9_IAS-M), Version 16.10.1b, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2018 by Cisco Systems, Inc.
Compiled Wed 12-Dec-18 01:49 by mcpre
PLEASE READ THE FOLLOWING TERMS CAREFULLY. INSTALLING THE LICENSE OR
LICENSE KEY PROVIDED FOR ANY CISCO SOFTWARE PRODUCT, PRODUCT FEATURE,
AND/OR SUBSEQUENTLY PROVIDED SOFTWARE FEATURES (COLLECTIVELY, THE
"SOFTWARE"), AND/OR USING SUCH SOFTWARE CONSTITUTES YOUR FULL
ACCEPTANCE OF THE FOLLOWING TERMS. YOU MUST NOT PROCEED FURTHER IF YOU
ARE NOT WILLING TO BE BOUND BY ALL THE TERMS SET FORTH HEREIN.
Your use of the Software is subject to the Cisco End User License Agreement
(EULA) and any relevant supplemental terms (SEULA) found at
http://www.cisco.com/c/en/us/about/legal/cloud-and-software/software-terms.html.
You hereby acknowledge and agree that certain Software and/or features are
licensed for a particular term, that the license to such Software and/or
features is valid only for the applicable term and that such Software and/or
features may be shut down or otherwise terminated by Cisco after expiration
of the applicable license term (e.g., 90-day trial period). Cisco reserves
the right to terminate any such Software feature electronically or by any
other means available. While Cisco may provide alerts, it is your sole
responsibility to monitor your usage of any such term Software feature to
ensure that your systems and networks are prepared for a shutdown of the
Software feature.
% Failed to initialize nvram
% Failed to initialize backup nvram
cisco C1111-8PLTELA (1RU) processor with 1407249K/6147K bytes of memory.
Processor board ID FGL23491234
1 Virtual Ethernet interface
10 Gigabit Ethernet interfaces
2 Cellular interfaces
32768K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
2863103K bytes of flash memory at bootflash:.
0K bytes of WebUI ODM Files at webui:.
%INIT: waited 0 seconds for NVRAM to be available
--- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]:
Press RETURN to get started!
*Jan 12 02:28:06.834: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled features is not allowed
*Jan 12 02:28:06.835: %SMART_LIC-6-AGENT_ENABLED: Smart Agent for Licensing is enabled
*Jan 12 02:28:06.835: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled features is not allowed
*Jan 12 02:28:07.338: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
*Jan 12 02:28:07.361: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
*Jan 12 02:28:07.383: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
<OUTPUT TRUNCATED>
*Jan 12 02:28:11.444: %ISR_THROUGHPUT-6-CRYPTO: Crypto level has been set to 50000 kbps
*Jan 12 02:28:11.895: %IOSXE_RP_NV-3-NV_ACCESS_FAIL: Initial read of NVRAM contents failed
*Jan 12 02:28:12.299: %IOSXE_RP_NV-3-BACKUP_NV_ACCESS_FAIL: Initial read of backup NVRAM contents failed
*Jan 12 02:28:12.498: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failedesg switch eventq crimson DB not initialized
*Jan 12 02:28:12.913: %SMART_LIC-6-AGENT_READY: Smart Agent for Licensing is initialized
*Jan 12 02:28:12.913: %SMART_LIC-6-AGENT_ENABLED: Smart Agent for Licensing is enabled
*Jan 12 02:28:12.913: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled features is not allowed
*Jan 12 02:28:12.929: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
*Jan 12 02:28:17.279: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for type vlan
*Jan 12 02:28:17.781: %LINK-3-UPDOWN: Interface Lsmpi0, changed state to up
*Jan 12 02:28:17.783: %LINK-3-UPDOWN: Interface EOBC0, changed state to up
*Jan 12 02:28:13.173: %CMLIB-6-THROUGHPUT_VALUE: R0/0: cmand: Throughput license found, throughput set to 50000 kbps
*Jan 12 02:28:17.996: %SMART_LIC-6-HA_ROLE_CHANGED: Smart Agent HA role changed to Active.
*Jan 12 02:28:18.208: %LINK-3-UPDOWN: Interface LIIN0, changed state to up
*Jan 12 02:28:18.810: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down
*Jan 12 02:28:18.810: %LINEPROTO-5-UPDOWN: Line protocol on Interface Lsmpi0, changed state to up
*Jan 12 02:28:18.811: %LINEPROTO-5-UPDOWN: Line protocol on Interface EOBC0, changed state to up
*Jan 12 02:28:19.220: %LINEPROTO-5-UPDOWN: Line protocol on Interface LIIN0, changed state to up
*Jan 12 02:28:19.247: %ONEP_BASE-6-SS_ENABLED: ONEP: Service set Base was enabled by Default
*Jan 12 02:28:21.109: %IOSXE_OIR-6-REMSPA: SPA removed from subslot 0/0, interfaces disabled
*Jan 12 02:28:21.109: %IOSXE_OIR-6-REMSPA: SPA removed from subslot 0/1, interfaces disabled
*Jan 12 02:28:21.109: %IOSXE_OIR-6-REMSPA: SPA removed from subslot 0/2, interfaces disabled
*Jan 12 02:28:21.140: %SPA_OIR-6-OFFLINECARD: SPA (C1111-2x1GE) offline in subslot 0/0
*Jan 12 02:28:21.151: %SPA_OIR-6-OFFLINECARD: SPA (C1111-ES-8) offline in subslot 0/1
*Jan 12 02:28:21.200: %CELLWAN-2-MODEM_DOWN: Modem in slot 0/2 is DOWN
*Jan 12 02:28:21.200: %CELLWAN-2-MODEM_DOWN: Modem in slot 0/2 is DOWN
*Jan 12 02:28:21.202: %SPA_OIR-6-OFFLINECARD: SPA (C1111-LTE) offline in subslot 0/2
*Jan 12 02:28:21.236: %IOSXE_OIR-6-INSCARD: Card (fp) inserted in slot F0
*Jan 12 02:28:21.236: %IOSXE_OIR-6-ONLINECARD: Card (fp) online in slot F0
*Jan 12 02:28:21.245: %IOSXE_OIR-6-INSCARD: Card (cc) inserted in slot 0
*Jan 12 02:28:21.245: %IOSXE_OIR-6-ONLINECARD: Card (cc) online in slot 0
*Jan 12 02:28:21.300: %IOSXE_OIR-6-INSSPA: SPA inserted in subslot 0/0
*Jan 12 02:28:21.304: %IOSXE_OIR-6-INSSPA: SPA inserted in subslot 0/1
*Jan 12 02:28:21.305: %IOSXE_OIR-6-INSSPA: SPA inserted in subslot 0/2
*Jan 12 02:28:26.429: %SPA_OIR-6-ONLINECARD: SPA (C1111-ES-8) online in subslot 0/1
*Jan 12 02:28:26.434: %LINK-3-UPDOWN: Interface Cellular0/2/0, changed state to down
*Jan 12 02:28:26.434: %LINK-3-UPDOWN: Interface Cellular0/2/1, changed state to down
*Jan 12 02:28:26.446: %SPA_OIR-6-ONLINECARD: SPA (C1111-LTE) online in subslot 0/2
*Jan 12 02:28:26.473: %SPA_OIR-6-ONLINECARD: SPA (C1111-2x1GE) online in subslot 0/0
*Jan 12 02:28:28.377: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/0, changed state to down
*Jan 12 02:28:28.378: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/0 Physical Port Link Down
*Jan 12 02:28:28.389: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/1, changed state to down
*Jan 12 02:28:28.389: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/1 Physical Port Link Down
*Jan 12 02:28:28.396: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/2, changed state to down
*Jan 12 02:28:28.397: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/2 Physical Port Link Down
*Jan 12 02:28:28.410: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/3, changed state to down
*Jan 12 02:28:28.411: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/3 Physical Port Link Down
*Jan 12 02:28:28.411: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/4, changed state to down
*Jan 12 02:28:28.412: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/4 Physical Port Link Down
*Jan 12 02:28:28.412: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/5, changed state to down
*Jan 12 02:28:28.413: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/5 Physical Port Link Down
*Jan 12 02:28:28.413: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/6, changed state to down
*Jan 12 02:29:33.425: %CELLWAN-5-SIM_DETECT_COMPLETE: [Cellular0/2/0]: SIM presence detection has completed !!
*Jan 12 02:29:39.427: %CELLWAN-2-SIM_NOT_PRESENT: [Cellular0/2/0]: SIM is not present in Slot 0
CRYPTO_PKI: setting trustpoint policy TP-self-signed-1543891264 to use keypair TP-self-signed-1543891264% Generating 2048 bit RSA keys, keys will be non-exportable...
*Jan 12 02:29:49.794: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named CISCO_IDEVID_SUDI has been generated or imported by pki-sudi
[OK] (elapsed time was 2 seconds)
*Jan 12 02:29:49.814: %PKI-2-NON_AUTHORITATIVE_CLOCK: PKI functions can not be initialized until an authoritative time source, like NTP, can be obtained.
*Jan 12 02:29:51.066: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-1543891264 has been generated or imported by crypto-engine
*Jan 12 02:29:51.069: %SSH-5-ENABLED: SSH 1.99 has been enabled
*Jan 12 02:29:51.146: %PKI-4-NOCONFIGAUTOSAVE: Configuration was modified. Issue "write memory" to save new IOS PKI configuration
*Jan 12 02:29:51.240: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-1543891264.server has been generated or imported by crypto-engine
*Jan 12 02:30:00.270: %PKI-4-NOCONFIGAUTOSAVE: Configuration was modified. Issue "write memory" to save new IOS PKI configuration
*Jan 12 02:30:00.276: %CALL_HOME-6-CALL_HOME_ENABLED: Call-home is enabled by Smart Agent for Licensing.
*Jan 12 02:30:00.276: %SMART_LIC-5-COMM_RESTORED: Communications with the Cisco Smart Software Manager or satellite restored
*Jan 12 02:30:38.915: %CELLWAN-2-MODEM_UP: Modem in slot 0/2 is now UP
*Jan 12 02:30:39.117: %CELLWAN-2-MODEM_RADIO: Cellular0/2/0 Modem radio has been turned on
*Jan 12 02:30:41.128: %LINK-3-UPDOWN: Interface Cellular0/2/0, changed state to up
*Jan 12 02:30:42.131: %LINEPROTO-5-UPDOWN: Line protocol on Interface Cellular0/2/0, changed state to up
*Jan 12 02:30:58.429: %CELLWAN-6-CELLULAR_BACKOFF_START: Cellular0/2/0: Cellular back-off has started on PDN 0
Router>enable
Router#show version
Cisco IOS XE Software, Version 16.10.01b
Cisco IOS Software [Gibraltar], ISR Software (ARMV8EL_LINUX_IOSD-UNIVERSALK9_IAS-M), Version 16.10.1b, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2018 by Cisco Systems, Inc.
Compiled Wed 12-Dec-18 01:49 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2018 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
Router uptime is 5 minutes
Uptime for this control processor is 7 minutes
System returned to ROM by Reload Command
System image file is "bootflash:c1100-universalk9_ias.16.10.01b.SPA.bin"
Last reload reason: Reload Command
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
Suite License Information for Module:'esg'
--------------------------------------------------------------------------------
Suite Suite Current Type Suite Next reboot
--------------------------------------------------------------------------------
FoundationSuiteK9 None Smart License None
securityk9
appxk9
Technology Package License Information:
-----------------------------------------------------------------
Technology Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------
appxk9 None Smart License None
securityk9 None Smart License None
ipbase ipbasek9 Smart License ipbasek9
The current throughput level is unthrottled
Smart Licensing Status: UNREGISTERED/No Licenses in Use
cisco C1111-8PLTELA (1RU) processor with 1407249K/6147K bytes of memory.
Processor board ID FGL23491234
1 Virtual Ethernet interface
10 Gigabit Ethernet interfaces
2 Cellular interfaces
32768K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
2863103K bytes of flash memory at bootflash:.
0K bytes of WebUI ODM Files at webui:.
Configuration register is 0x2102
Router#
*Jan 12 02:33:38.602: %PNP-6-PNP_DISCOVERY_STOPPED: PnP Discovery stopped (Config Wizard)
Router#show ip interface brief
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0/0 unassigned YES unset down down
GigabitEthernet0/0/1 unassigned YES unset administratively down down
GigabitEthernet0/1/0 unassigned YES unset down down
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
GigabitEthernet0/1/4 unassigned YES unset down down
GigabitEthernet0/1/5 unassigned YES unset down down
GigabitEthernet0/1/6 unassigned YES unset down down
GigabitEthernet0/1/7 unassigned YES unset down down
Cellular0/2/0 unassigned YES TFTP up up
Cellular0/2/1 unassigned YES unset administratively down down
Vlan1 unassigned YES unset up down
Router#show run
Building configuration...
Current configuration : 6325 bytes
!
! Last configuration change at 02:33:37 UTC Sun Jan 12 2020
!
version 16.10
service timestamps debug datetime msec
service timestamps log datetime msec
! Call-home is enabled by Smart-Licensing.
service call-home
platform qfp utilization monitor load 80
no platform punt-keepalive disable-kernel-core
!
hostname Router
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
call-home
! If contact email address in call-home is configured as sch-smart-licensing@cisco.com
! the email address configured in Cisco Smart License Portal will be used as contact email address to send SCH notifications.
contact-email-addr sch-smart-licensing@cisco.com
profile "CiscoTAC-1"
active
destination transport-method http
no destination transport-method email
!
!
!
!
login on-success log
!
!
!
!
!
!
!
subscriber templating
multilink bundle-name authenticated
!
!
!
crypto pki trustpoint TP-self-signed-1543891264
enrollment selfsigned
subject-name cn=IOS-Self-Signed-Certificate-1543891264
revocation-check none
rsakeypair TP-self-signed-1543891264
!
crypto pki trustpoint SLA-TrustPoint
enrollment pkcs12
revocation-check crl
!
!
crypto pki certificate chain TP-self-signed-1543891264
certificate self-signed 01
30820330 30820218 A0030201 02020101 300D0609 2A864886 F70D0101 05050030
<OUTPUT TRUNCATED>
731BECC1 57896D74 7F235BB5 C94D3911 361B9FE2
quit
crypto pki certificate chain SLA-TrustPoint
certificate ca 01
30820321 30820209 A0030201 02020101 300D0609 2A864886 F70D0101 0B050030
<OUTPUT TRUNCATED>
D697DF7F 28
quit
!
license udi pid C1111-8PLTELA sn FGL23491234
!
diagnostic bootup level minimal
!
spanning-tree extend system-id
!
!
!
redundancy
mode none
!
controller Cellular 0/2/0
lte modem link-recovery rssi onset-threshold -110
lte modem link-recovery monitor-timer 20
lte modem link-recovery wait-timer 10
lte modem link-recovery debounce-count 6
lte modem crash-action boot-and-hold
!
!
vlan internal allocation policy ascending
!
!
!
!
!
!
interface GigabitEthernet0/0/0
no ip address
negotiation auto
!
interface GigabitEthernet0/0/1
no ip address
shutdown
negotiation auto
!
interface GigabitEthernet0/1/0
!
interface GigabitEthernet0/1/1
!
interface GigabitEthernet0/1/2
!
interface GigabitEthernet0/1/3
!
interface GigabitEthernet0/1/4
!
interface GigabitEthernet0/1/5
!
interface GigabitEthernet0/1/6
!
interface GigabitEthernet0/1/7
!
interface Cellular0/2/0
ip address negotiated
ipv6 enable
!
interface Cellular0/2/1
no ip address
shutdown
!
interface Vlan1
no ip address
!
ip forward-protocol nd
ip http server
ip http authentication local
ip http secure-server
!
!
!
!
!
!
control-plane
!
!
line con 0
exec-timeout 0 0
transport input none
stopbits 1
line vty 0 4
login
!
!
!
!
!
!
end
Router#show license ?
all Show license all information
reservation Show license reservation information
status Show license status information
summary Show license summary
tech show license tech support information
udi Show license udi information
usage Show license usage information
Router#show license all
Smart Licensing Status
======================
Smart Licensing is ENABLED
Registration:
Status: UNREGISTERED
Export-Controlled Functionality: NOT ALLOWED
License Authorization:
Status: No Licenses in Use
License Conversion:
Automatic Conversion Enabled: False
Status: Not started
Export Authorization Key:
Features Authorized:
<none>
Utility:
Status: DISABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
License Usage
==============
No licenses in use
Product Information
===================
UDI: PID:C1111-8PLTELA,SN:FGL23491234
Agent Version
=============
Smart Agent for Licensing: 4.5.10_rel/87
Component Versions: SA:(1_3_dev)1.0.15, SI:(dev22)1.2.1, CH:(rel5)1.0.3, PK:(dev18)1.0.3
Reservation Info
================
License reservation: DISABLED
You'll need a Nano-to-Micro SIM card adapter to insert the LTE SIM card. Just follow up the orientation of the SIM card or icon displayed. I used slot 0 (bottom slot) since the Cellular 0/2/0 interface is enabled/unshut by default. You can just push the SIM card again in order to eject or remove it.
Router#
*Jan 12 03:20:39.978: %CELLWAN-6-SIM_INSERTED: [Cellular0/2/0]: SIM in slot 0 has been
inserted
Router#show cellular 0/2/0 ?
all Display all the information
connection Current active connection and statistics
firmware Display list of all available f/w
fota Cellular fota status
gps Cellular gps information
hardware Cellular modem hardware information
logs Modem logging information
network Cellular network information
profile Profile information in the modem
qos Current QoS configuration and statistics
radio Cellular modem radio information
security Modem security status
sms SMS information
Router#show cellular 0/2/0 security
Active SIM = 0
SIM switchover attempts = 0
Card Holder Verification (CHV1) = Disabled
SIM Status = Not inserted
SIM User Operation Required = None
Number of CHV1 Retries remaining = 0
Router#show cellular 0/2/0 network
Current System Time = Sun Jan 12 3:23:14 2020
Current Service Status = Normal
Current Service = Packet switched
Current Roaming Status = Home
Network Selection Mode = Automatic
Network = Singtel
Mobile Country Code (MCC) = 525
Mobile Network Code (MNC) = 1
Packet switch domain(PS) state = Attached
LTE Carrier Aggregation state = Deconfigured
Registration state(EMM) = Registered
EMM Sub State = Normal Service
Tracking Area Code (TAC) = 710
Cell ID = 197293313
Network MTU = Not Available
Router#show cellular 0/2/0 radio
Radio power mode = online
LTE Rx Channel Number = 3250
LTE Tx Channel Number = 21250
LTE Band = 7
LTE Bandwidth = 20 MHz
Current RSSI = -64 dBm
Current RSRP = -101 dBm
Current RSRQ = -13 dB
Current SNR = 4.0 dB
Physical Cell Id = 393
Number of nearby cells = 4
Idx PCI (Physical Cell Id)
--------------------------------
1 393
2 142
3 171
4 138
Radio Access Technology(RAT) Preference = AUTO
Radio Access Technology(RAT) Selected = LTE
Router#show cellular 0/2/0 profile
Profile 1 = INACTIVE* **
--------
PDP Type = IPv4v6
Access Point Name (APN) =
Authentication = None
* - Default profile
** - LTE attach profile
Router#show interface cellular 0/2/0
Cellular0/2/0 is up, line protocol is up
Hardware is LTE Adv CAT6 - Multimode LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS
Internet address will be negotiated using IPCP
MTU 1500 bytes, BW 50000 Kbit/sec, DLY 20000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation HDLC, loopback not set
Keepalive not supported
Last input never, output 00:37:08, output hang never
Last clearing of "show interface" counters never
Input queue: 0/375/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/40 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
107 packets output, 7764 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 output buffer failures, 0 output buffers swapped out
0 carrier transitions
I used the same configuration for the Cisco 899 LTE router in my previous post except the encapsulation slip under the Cellular interface is not supported in the new C1100 LTE Advanced ISR. I also used no authentication (none) for the SingTel APN profile.
Router#cellular ?
<0-0> Cellular interface number
Router#cellular 0/2/0 ?
copy Copy Command
lte LTE Technology Commands
Router#cellular 0/2/0 lte ?
firmware-activate firmware activate
fota AVMS Firmware upgrade over the air
plmn PLMN Commands
prl-region View/set PRL region
profile LTE Profile management commands
sim SIM card commands
sms SMS Commands
technology LTE Technology Preferences
Router#cellular 0/2/0 lte profile ?
create Create/Edit a Profile
delete Delete a profile
Router#cellular 0/2/0 lte profile create ?
<1-16> Profile Number
Router#cellular 0/2/0 lte profile create 1 ?
WORD Access Point Name
<cr> <cr>
Router#cellular 0/2/0 lte profile create 1 e-ideas ?
chap CHAP authentication only
none No authentication
pap PAP authentication only
pap_chap PAP or CHAP authentication
<cr> <cr>
Router#cellular 0/2/0 lte profile create 1 e-ideas none ?
ipv4 IPv4 type Bearer
ipv4v6 IPV4V6 type Bearer
ipv6 IPV6 type Bearer
<cr> <cr>
Router#cellular 0/2/0 lte profile create 1 e-ideas none ipv4
Warning: You are attempting to modify the attach profile.
Connection will be reset
PDP Type = IPv4v6
Access Point Name (APN) =
Authentication = NONE
Profile 1 already exists with above parameters. Do you want to overwrite? [confirm]
Profile 1 will be overwritten with the following values:
PDP type = IPv4
APN = e-ideas
Authentication = NONE
Are you sure? [confirm]
Profile 1 written to modem
*Jan 12 03:38:07.825: %CELLWAN-2-MODEM_RADIO: Cellular0/2/0 Modem radio has been turned off
*Jan 12 03:38:08.025: %CELLWAN-2-MODEM_RADIO: Cellular0/2/0 Modem radio has been turned on
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface Cellular0/2/0
Router(config-if)# ip address negotiated ip address ?
A.B.C.D IP address
negotiated IP Address negotiated over PPP
pool IP Address autoconfigured from a local DHCP pool
slarp Set IP address through SLARP
Router(config-if)#ip address negotiated
Router(config-if)#encapsulation slip
^
% Invalid input detected at '^' marker.
Router(config-if)#encapsulation ?
arpa Standard Ethernet version 2.0
atm-dxi ATM-DXI encapsulation
frame-relay Frame Relay networks
hdlc Serial HDLC synchronous
lapb LAPB (X.25 Level 2)
ppp Point-to-Point protocol
smds Switched Megabit Data Service (SMDS)
x25 X.25
Router(config-if)#ip nat ?
allow-static-host Allow static-ip clients
enable Enable interface for address translation
inside Inside interface for address translation
outside Outside interface for address translation
Router(config-if)#ip nat outside
Router(config-if)#dialer ?
callback-secure Enable callback security
disable-multiencaps Disable Multi-Encaps for ISDN
down-with-vInterface Bring down Dialer when Virtual interface is down
dtr Set DTR dialing for interface
enable-timeout Set length of time an interface stays down before it
is available for dialing
fast-idle Set idle time before disconnecting line with an
unusually high level of contention
hold-queue Configure output hold queue
idle-timeout Specify idle timeout before disconnecting line
in-band Set v.25bis dialing for interface
leased Leased/Non-Dial link
map Define multiple dial-on-demand numbers
mult-map-same-name Multiple maps same remote name
order Specify order of choosing dialstrings
pool-member Specify dialer pool membership
pppoe-client-vlan-cos set dot1p cos value in pppoe control packets
priority Specify priority for use in dialer group
redial Configure redial for this interface
rotary-group Add to a dialer rotary group
snapshot Enable snapshot address for dialer profile
vpdn Enable vpdn dial
wait-for-carrier-time How long the router will wait for carrier
wait-for-line-protocol Time the router will wait for the line protocol to
come up
watch-disable Time to wait before bringing down watched route link
watch-group Assign interface to dialer-watch-list
Router(config-if)#dialer in-band
Router(config-if)#dialer idle-timeout ?
<0-2147483> Idle timeout before disconnecting a call
Router(config-if)#dialer idle-timeout 0
Router(config-if)#dialer-group ?
<1-128> Dialer list number
Router(config-if)#dialer-group 1
Router(config-if)#exit
Router(config)#
Router(config-if)#interface GigabitEthernet0/0/0
Router(config-if)# ip address 192.168.1.1 255.255.255.0
Router(config-if)# ip nat inside
Router(config-if)#exit
Router(config)#ip route 0.0.0.0 0.0.0.0 Cellular0/2/0
Router(config)#access-list 1 permit 192.168.1.0 0.0.0.255
Router(config)#ip nat inside source list 1 interface Cellular0/2/0 overload
Router(config)#dialer-list 1 ?
protocol Permit or Deny based on protocols
Router(config)#dialer-list 1 protocol ?
bridge Bridging
clns OSI Connectionless Network Service
clns_es CLNS End System
clns_is CLNS Intermediate System
ip IP
ipv6 IPv6
llc2 LLC2
xns XNS
Router(config)#dialer-list 1 protocol ip ?
deny Deny specified protocol
list Add access list to dialer list
permit Permit specified protocol
Router(config)#dialer-list 1 protocol ip permit
Router(config)#end
Router#
*Jan 12 03:26:48.922: %SYS-5-CONFIG_I: Configured from console by console
Router#show run
Building configuration...
Current configuration : 6624 bytes
!
! Last configuration change at 03:26:48 UTC Sun Jan 12 2020
!
version 16.10
service timestamps debug datetime msec
service timestamps log datetime msec
! Call-home is enabled by Smart-Licensing.
service call-home
platform qfp utilization monitor load 80
no platform punt-keepalive disable-kernel-core
!
hostname Router
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
call-home
! If contact email address in call-home is configured as sch-smart-licensing@cisco.com
! the email address configured in Cisco Smart License Portal will be used as contact email address to send SCH notifications.
contact-email-addr sch-smart-licensing@cisco.com
profile "CiscoTAC-1"
active
destination transport-method http
no destination transport-method email
!
!
!
!
login on-success log
!
!
!
!
!
!
!
subscriber templating
multilink bundle-name authenticated
!
!
!
crypto pki trustpoint TP-self-signed-1543891264
enrollment selfsigned
subject-name cn=IOS-Self-Signed-Certificate-1543891264
revocation-check none
rsakeypair TP-self-signed-1543891264
!
crypto pki trustpoint SLA-TrustPoint
enrollment pkcs12
revocation-check crl
!
!
crypto pki certificate chain TP-self-signed-1543891264
certificate self-signed 01
30820330 30820218 A0030201 02020101 300D0609 2A864886 F70D0101 05050030
<OUTPUT TRUNCATED>
731BECC1 57896D74 7F235BB5 C94D3911 361B9FE2
quit
crypto pki certificate chain SLA-TrustPoint
certificate ca 01
30820321 30820209 A0030201 02020101 300D0609 2A864886 F70D0101 0B050030
<OUTPUT TRUNCATED>
D697DF7F 28
quit
!
license udi pid C1111-8PLTELA sn FGL23491234
!
diagnostic bootup level minimal
!
spanning-tree extend system-id
!
!
!
redundancy
mode none
!
controller Cellular 0/2/0
lte modem link-recovery rssi onset-threshold -110
lte modem link-recovery monitor-timer 20
lte modem link-recovery wait-timer 10
lte modem link-recovery debounce-count 6
lte modem crash-action boot-and-hold
!
!
vlan internal allocation policy ascending
!
!
!
!
!
!
interface GigabitEthernet0/0/0
ip address 192.168.1.1 255.255.255.0
ip nat inside
negotiation auto
!
interface GigabitEthernet0/0/1
no ip address
shutdown
negotiation auto
!
interface GigabitEthernet0/1/0
!
interface GigabitEthernet0/1/1
!
interface GigabitEthernet0/1/2
!
interface GigabitEthernet0/1/3
!
interface GigabitEthernet0/1/4
!
interface GigabitEthernet0/1/5
!
interface GigabitEthernet0/1/6
!
interface GigabitEthernet0/1/7
!
interface Cellular0/2/0
ip address negotiated
ip nat outside
dialer in-band
dialer idle-timeout 0
dialer-group 1
ipv6 enable
pulse-time 1
!
interface Cellular0/2/1
no ip address
shutdown
!
interface Vlan1
no ip address
!
ip forward-protocol nd
ip http server
ip http authentication local
ip http secure-server
ip nat inside source list 1 interface Cellular0/2/0 overload
ip route 0.0.0.0 0.0.0.0 Cellular0/2/0
!
!
access-list 1 permit 192.168.1.0 0.0.0.255
dialer-list 1 protocol ip permit
!
!
!
!
control-plane
!
!
line con 0
exec-timeout 0 0
transport input none
stopbits 1
line vty 0 4
login
!
!
!
!
!
!
end
Router#debug chat
Chat scripts activity debugging is on
Router#debug modem
Modem control/process activation debugging is on
Router#debug dialer
Dial on demand events debugging is on
Router#debug cellular 0/2/0 messages callcontrol
CALLCONTROL debugging is on
Router#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/34/48 ms
Router#
*Jan 12 03:38:08.032: TTY866: EXEC creation
*Jan 12 03:38:09.300: Ce0/2/0 DDR: place call
*Jan 12 03:38:09.300: Ce0/2/0 DDR: Dialing cause ip (s=0.0.0.0, d=255.255.255.255)
*Jan 12 03:38:09.300: Ce0/2/0 DDR: Attempting to dial lte
*Jan 12 03:38:09.300: back off timer is not running for PDN 0
*Jan 12 03:38:09.300: api_manage_packet_session: Cellular0/2/0 profile 255 activate 1
*Jan 12 03:38:09.302: TTY866: Error setting method list for stop
*Jan 12 03:38:09.302: TTY866: Line reset by "Virtual Exec"
*Jan 12 03:38:09.302: TTY866: Modem: (unknown)->READY
*Jan 12 03:38:09.302: TTY866: no timer type 0 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 1 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 3 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 4 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 10 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 2 to destroy
*Jan 12 03:38:10.282: Cellular0/2/0: pdn:0 status:3
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: instance id:0 profile:0 status:1
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: Cellular0/2/0 instance_id 0 profile_id 0
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: active_status[1],ipfamily[4]
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: active_status[1],ipfamily[4]ipv4status[1],ipv6status[0]
*Jan 12 03:38:12.280: handle_call_history: new and old status the same 1
*Jan 12 03:38:12.280: cellular_update_profile_id_for_latest_call_setup: Cellular0/2/0 profile_id 1, active_status 1, pdn 0
*Jan 12 03:38:12.280: cellular_update_profile_id_for_latest_call_setup: pending_idb: Cellular0/2/0
*Jan 12 03:38:12.280: subuint 0 profile_id 1
*Jan 12 03:38:12.281: cellwan_api_pkt_session_notify: session status 1
*Jan 12 03:38:12.396: cellwan_api_handle_profile_ip_addr_get_resp pdn 0 valid 1 ipv4 length 4 ipv6 prefix length 0, session active 1, profile:0
*Jan 12 03:38:12.396: IPV4 Address =
*Jan 12 03:38:12.396: cellwan_api_handle_profile_ip_addr_get_resp: Lineaction Cellular0/2/0
*Jan 12 03:38:12.396: cellular_dip_ip_address_negotiated: Found profile ID 1 for Cellular0/2/0
*Jan 12 03:38:12.396: Cellular0/2/0 DirectIP: Install negotiated IP interface address 10.236.100.163
*Jan 12 03:38:12.401: cellular_line_protocol_up: Cellular0/2/0
*Jan 12 03:38:12.402: Reset back off for PDN 0
*Jan 12 03:38:12.402: %CELLWAN-6-CELLULAR_BACKOFF_STOP: Cellular0/2/0: Cellular back-off has stopped on PDN 0
*Jan 12 03:38:12.402: Ce0/2/0 DDR: dialer protocol up
*Jan 12 03:38:12.432: Cellular0/2/0 DirectIP: Primary DNS address 165.21.83.88 added
*Jan 12 03:38:12.432: Cellular0/2/0 DirectIP: Secondary DNS 165.21.100.88 added
*Jan 12 03:38:12.419: %FMFP-3-OBJ_DWNLD_TO_DP_FAILED: R0/0: fman_fp_image: PORTLIST: (tcp/10.236.100.163 port 5062 - 6085) download to DP failed
*Jan 12 03:38:22.626: Ce0/2/0 DDR: re-enable timeout
Router#show cellular 0/2/0 profile
Profile 1 = ACTIVE* **
--------
PDP Type = IPv4
PDP address = 10.236.100.163
Access Point Name (APN) = e-ideas
Authentication = None
Primary DNS address = 165.21.83.88
Secondary DNS address = 165.21.100.88
* - Default profile
** - LTE attach profile
Configured default profile for active SIM 0 is profile 1.
Router#show interface cellular 0/2/0
Cellular0/2/0 is up, line protocol is up
Hardware is LTE Adv CAT6 - Multimode LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS
Internet address is 10.236.100.163/32
MTU 1500 bytes, BW 50000 Kbit/sec, DLY 20000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation HDLC, loopback not set
Keepalive not supported
DTR is pulsed for 1 seconds on reset
Last input 00:01:00, output 00:01:00, output hang never
Last clearing of "show interface" counters never
Input queue: 0/375/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/40 (size/max)
5 minute input rate 110000 bits/sec, 1 packets/sec
5 minute output rate 2000 bits/sec, 1 packets/sec
6112 packets input, 6910782 bytes, 0 no buffer
Received 0 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
3970 packets output, 693078 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 output buffer failures, 0 output buffers swapped out
Router#ping 8.8.8.8 source 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 192.168.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/48/112 ms
Router#show ip interface b rief
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0/0 192.168.1.1 YES manual up up
GigabitEthernet0/0/1 unassigned YES unset administratively down down
GigabitEthernet0/1/0 unassigned YES unset down down
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
GigabitEthernet0/1/4 unassigned YES unset down down
GigabitEthernet0/1/5 unassigned YES unset down down
GigabitEthernet0/1/6 unassigned YES unset down down
GigabitEthernet0/1/7 unassigned YES unset down down
Cellular0/2/0 10.236.100.163 YES IPCP up up
Cellular0/2/1 unassigned YES unset administratively down down
Vlan1 unassigned YES unset up down
You can also use the built-in 8-port switch (Layer 2 only) for connnecting multiple LAN clients. I just moved the Layer 3 IP address from G0/0/0 to SVI 1.
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface GigabitEthernet0/0/0
Router(config-if)#no ip address
Router(config-if)#no ip nat inside
Router(config-if)#exit
Router(config)#interface vlan1
Router(config-if)# ip address 192.168.1.1 255.255.255.0
Router(config-if)# ip nat inside
Router(config-if)#end
Router#
*Jan 12 03:46:45.939: %SYS-5-CONFIG_I: Configured from console by console
Router#
*Jan 12 03:47:10.164: %LINK-3-UPDOWN: Interface GigabitEthernet0/0/0, changed state to down
*Jan 12 03:47:11.167: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0/0, changed state to down
*Jan 12 03:47:32.967: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/0, changed state to up
*Jan 12 03:47:33.965: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1/0, changed state to up
*Jan 12 03:47:33.970: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to up
Router#show ip interface brief
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0/0 unassigned YES manual down down
GigabitEthernet0/0/1 unassigned YES unset administratively down down
GigabitEthernet0/1/0 unassigned YES unset up up // LAPTOP CONNECTED
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
GigabitEthernet0/1/4 unassigned YES unset down down
GigabitEthernet0/1/5 unassigned YES unset down down
GigabitEthernet0/1/6 unassigned YES unset down down
GigabitEthernet0/1/7 unassigned YES unset down down
Cellular0/2/0 10.236.100.163 YES IPCP up up
Cellular0/2/1 unassigned YES unset administratively down down
Vlan1 192.168.1.1 YES manual up up
The inherent latency on LTE to the Internet (Google DNS 8.8.8.8) is a bit higher compared to a wired or wireless connection. The network throughput (download/upload speed) is reasonable enough to be used in a SOHO/remote site (or in a retail store) with a good LTE coverage.
Router#ping 8.8.8.8 source 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 192.168.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 16/23/32 ms
This was in Capitol Commons where we bought our gifts. There were nice lights (in a shape of a lamp post) in the park area.
We decided to go shopping in Divisoria so we had lunch at Sincerity restaurant in Lucky Chinatown Mall. Their fried chicken and fried kikiam were really good.
There's also a museum located inside the mall.
We went to Eastwood City Mall and tried out Mystery Manila. We chose the School of Sorcery (feels like Harry Potter) and got out the room in less than 50 minutes.
We had a Filipino buffet lunch at Guevarra's in San Juan City after the New Year. My Filipino food cravings were satisfied.
We booked and went to see Disney on Ice in Mall of Asia Arena after the New Year. The children (including myself) were ecstatic see the characters in Frozen.
Here are some caveats when cofiguring a Cisco 1100 LTE Advanced ISR series router.
Overview of Cisco 4G LTE Advanced
Cisco 4G LTE supports the following 4G/3G modes:
• 4G LTE —4G LTE mobile specification provides multi-megabit bandwidth, more efficient radio network, latency reduction, and improved mobility. LTE solutions target new cellular networks. These networks initially support up to 300 Mb/s peak rates in the downlink and up to 50 Mb/s peak rates in the uplink. The throughput of these networks is higher than the existing 3G networks.
• 3G Evolution High-Speed Packet Access (HSPA/HSPA+) —HSPA is a UMTS-based 3G network. It supports High-Speed Downlink Packet Access (HSDPA) and High-Speed Uplink Packet Access (HSUPA) data for improved download and upload speeds. Evolution High-Speed Packet Access (HSPA+) supports Multiple Input/Multiple Output (MIMO) antenna capability.
Prerequisites for Configuring Cisco 4G LTE Advanced
• If the signal is not good at the router, use the Cisco offered antenna accessories and extension cables to place the antenna away from router in a better coverage area.
• You must have 4G LTE network coverage where your router is physically placed.
• You must subscribe to a service plan with a wireless service provider and obtain a Subscriber Identity Module (SIM) card. Only micro SIM is supported.
• You must install the SIM card before configuring the 4G LTE or Cisco C1100 series router.
• The standalone antenna that supports GPS capabilities must be installed for the GPS feature to work. See the Cisco 4G Indoor/Outdoor Active GPS Antenna (GPS-ACT-ANTM-SMA) document for installation information.
Restrictions for Configuring Cisco 4G LTE Advanced
• Currently, cellular networks support only user initiated bearer establishment.
• Due to the shared nature of wireless communications, the experienced throughput varies depending on the number of active users or congestion in a given network.
• Cellular networks have higher latency compared to wired networks. Latency rates depend on the technology and carrier. Latency also depends on the signal conditions and can be higher because of network congestion.
• CDMA-EVDO, CDMA-1xRTT, and GPRS technology modes are not supported.
• Any restrictions that are part of the terms of service from your carrier.
• SMS—Only one text message up to 160 characters to one recipient at a time is supported. Larger texts are automatically truncated to the proper size before being sent.
• It is strongly recommended that you configure SNMP V3 with authentication/privacy.
The following features are not supported on Cisco 4G LTE Advanced C1100 Series ISR, when compared to Classic IOS:
• TTY support or Line
• Chat script/dialer string
• External Dialer
• DM log output to USB flash is not supported.
Below are the photos (front and back) of a C1111-8PLTELA router. It uses an off-white/metallic chassis which is similar to the new Cisco Firepower 2100 and WLC 3504.
It has a built-in 8-port switch (Layer 2 only), two Gig ports (Layer 3): G0/0/0 (has an option for fiber SFP) and G0/0/1 (copper-only) and two LTE antenna.
You can use a flat screw driver to open the SIM card slot cover.
Below are the initial bootup and running-config. The LTE Advanced router uses an IOS-XE software (Linux Kernel). The interfaces GigabitEthernet0/0/0 and Cellular0/2/0 are enabled by default. It also uses Cisco Smart Licensing (CSL).
Rom image verified correctly
System Bootstrap, Version 16.9(1r), RELEASE SOFTWARE
Copyright (c) 1994-2018 by cisco Systems, Inc.
Current image running: Boot ROM0
Last reset cause: PowerOn
C1111-8PLTELA platform with 4194304 Kbytes of main memory
........
no valid BOOT image found
Final autoboot attempt from default boot device...
Located throughput_monitor_params
#
Unsupported package header version (-1347440721)
Located c1100-universalk9_ias.16.10.01b.SPA.bin
################################################################
<OUTPUT TRUNCATED>
################################################################
Package header rev 3 structure detected
IsoSize = 484581376
Calculating SHA-1 hash...Validate package: SHA-1 hash:
calculated 471FE7F1:7BD648C4:DD9EA59C:D7EA6B94:F6CF1438
expected 471FE7F1:7BD648C4:DD9EA59C:D7EA6B94:F6CF1438
RSA Signed RELEASE Image Signature Verification Successful
Image validated
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software [Gibraltar], ISR Software (ARMV8EL_LINUX_IOSD-UNIVERSALK9_IAS-M), Version 16.10.1b, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2018 by Cisco Systems, Inc.
Compiled Wed 12-Dec-18 01:49 by mcpre
PLEASE READ THE FOLLOWING TERMS CAREFULLY. INSTALLING THE LICENSE OR
LICENSE KEY PROVIDED FOR ANY CISCO SOFTWARE PRODUCT, PRODUCT FEATURE,
AND/OR SUBSEQUENTLY PROVIDED SOFTWARE FEATURES (COLLECTIVELY, THE
"SOFTWARE"), AND/OR USING SUCH SOFTWARE CONSTITUTES YOUR FULL
ACCEPTANCE OF THE FOLLOWING TERMS. YOU MUST NOT PROCEED FURTHER IF YOU
ARE NOT WILLING TO BE BOUND BY ALL THE TERMS SET FORTH HEREIN.
Your use of the Software is subject to the Cisco End User License Agreement
(EULA) and any relevant supplemental terms (SEULA) found at
http://www.cisco.com/c/en/us/about/legal/cloud-and-software/software-terms.html.
You hereby acknowledge and agree that certain Software and/or features are
licensed for a particular term, that the license to such Software and/or
features is valid only for the applicable term and that such Software and/or
features may be shut down or otherwise terminated by Cisco after expiration
of the applicable license term (e.g., 90-day trial period). Cisco reserves
the right to terminate any such Software feature electronically or by any
other means available. While Cisco may provide alerts, it is your sole
responsibility to monitor your usage of any such term Software feature to
ensure that your systems and networks are prepared for a shutdown of the
Software feature.
% Failed to initialize nvram
% Failed to initialize backup nvram
cisco C1111-8PLTELA (1RU) processor with 1407249K/6147K bytes of memory.
Processor board ID FGL23491234
1 Virtual Ethernet interface
10 Gigabit Ethernet interfaces
2 Cellular interfaces
32768K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
2863103K bytes of flash memory at bootflash:.
0K bytes of WebUI ODM Files at webui:.
%INIT: waited 0 seconds for NVRAM to be available
--- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]:
Press RETURN to get started!
*Jan 12 02:28:06.834: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled features is not allowed
*Jan 12 02:28:06.835: %SMART_LIC-6-AGENT_ENABLED: Smart Agent for Licensing is enabled
*Jan 12 02:28:06.835: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled features is not allowed
*Jan 12 02:28:07.338: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
*Jan 12 02:28:07.361: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
*Jan 12 02:28:07.383: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
<OUTPUT TRUNCATED>
*Jan 12 02:28:11.444: %ISR_THROUGHPUT-6-CRYPTO: Crypto level has been set to 50000 kbps
*Jan 12 02:28:11.895: %IOSXE_RP_NV-3-NV_ACCESS_FAIL: Initial read of NVRAM contents failed
*Jan 12 02:28:12.299: %IOSXE_RP_NV-3-BACKUP_NV_ACCESS_FAIL: Initial read of backup NVRAM contents failed
*Jan 12 02:28:12.498: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failedesg switch eventq crimson DB not initialized
*Jan 12 02:28:12.913: %SMART_LIC-6-AGENT_READY: Smart Agent for Licensing is initialized
*Jan 12 02:28:12.913: %SMART_LIC-6-AGENT_ENABLED: Smart Agent for Licensing is enabled
*Jan 12 02:28:12.913: %SMART_LIC-6-EXPORT_CONTROLLED: Usage of export controlled features is not allowed
*Jan 12 02:28:12.929: %IOS_LICENSE_IMAGE_APPLICATION-3-FAILED: license request failed
*Jan 12 02:28:17.279: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for type vlan
*Jan 12 02:28:17.781: %LINK-3-UPDOWN: Interface Lsmpi0, changed state to up
*Jan 12 02:28:17.783: %LINK-3-UPDOWN: Interface EOBC0, changed state to up
*Jan 12 02:28:13.173: %CMLIB-6-THROUGHPUT_VALUE: R0/0: cmand: Throughput license found, throughput set to 50000 kbps
*Jan 12 02:28:17.996: %SMART_LIC-6-HA_ROLE_CHANGED: Smart Agent HA role changed to Active.
*Jan 12 02:28:18.208: %LINK-3-UPDOWN: Interface LIIN0, changed state to up
*Jan 12 02:28:18.810: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down
*Jan 12 02:28:18.810: %LINEPROTO-5-UPDOWN: Line protocol on Interface Lsmpi0, changed state to up
*Jan 12 02:28:18.811: %LINEPROTO-5-UPDOWN: Line protocol on Interface EOBC0, changed state to up
*Jan 12 02:28:19.220: %LINEPROTO-5-UPDOWN: Line protocol on Interface LIIN0, changed state to up
*Jan 12 02:28:19.247: %ONEP_BASE-6-SS_ENABLED: ONEP: Service set Base was enabled by Default
*Jan 12 02:28:21.109: %IOSXE_OIR-6-REMSPA: SPA removed from subslot 0/0, interfaces disabled
*Jan 12 02:28:21.109: %IOSXE_OIR-6-REMSPA: SPA removed from subslot 0/1, interfaces disabled
*Jan 12 02:28:21.109: %IOSXE_OIR-6-REMSPA: SPA removed from subslot 0/2, interfaces disabled
*Jan 12 02:28:21.140: %SPA_OIR-6-OFFLINECARD: SPA (C1111-2x1GE) offline in subslot 0/0
*Jan 12 02:28:21.151: %SPA_OIR-6-OFFLINECARD: SPA (C1111-ES-8) offline in subslot 0/1
*Jan 12 02:28:21.200: %CELLWAN-2-MODEM_DOWN: Modem in slot 0/2 is DOWN
*Jan 12 02:28:21.200: %CELLWAN-2-MODEM_DOWN: Modem in slot 0/2 is DOWN
*Jan 12 02:28:21.202: %SPA_OIR-6-OFFLINECARD: SPA (C1111-LTE) offline in subslot 0/2
*Jan 12 02:28:21.236: %IOSXE_OIR-6-INSCARD: Card (fp) inserted in slot F0
*Jan 12 02:28:21.236: %IOSXE_OIR-6-ONLINECARD: Card (fp) online in slot F0
*Jan 12 02:28:21.245: %IOSXE_OIR-6-INSCARD: Card (cc) inserted in slot 0
*Jan 12 02:28:21.245: %IOSXE_OIR-6-ONLINECARD: Card (cc) online in slot 0
*Jan 12 02:28:21.300: %IOSXE_OIR-6-INSSPA: SPA inserted in subslot 0/0
*Jan 12 02:28:21.304: %IOSXE_OIR-6-INSSPA: SPA inserted in subslot 0/1
*Jan 12 02:28:21.305: %IOSXE_OIR-6-INSSPA: SPA inserted in subslot 0/2
*Jan 12 02:28:26.429: %SPA_OIR-6-ONLINECARD: SPA (C1111-ES-8) online in subslot 0/1
*Jan 12 02:28:26.434: %LINK-3-UPDOWN: Interface Cellular0/2/0, changed state to down
*Jan 12 02:28:26.434: %LINK-3-UPDOWN: Interface Cellular0/2/1, changed state to down
*Jan 12 02:28:26.446: %SPA_OIR-6-ONLINECARD: SPA (C1111-LTE) online in subslot 0/2
*Jan 12 02:28:26.473: %SPA_OIR-6-ONLINECARD: SPA (C1111-2x1GE) online in subslot 0/0
*Jan 12 02:28:28.377: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/0, changed state to down
*Jan 12 02:28:28.378: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/0 Physical Port Link Down
*Jan 12 02:28:28.389: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/1, changed state to down
*Jan 12 02:28:28.389: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/1 Physical Port Link Down
*Jan 12 02:28:28.396: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/2, changed state to down
*Jan 12 02:28:28.397: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/2 Physical Port Link Down
*Jan 12 02:28:28.410: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/3, changed state to down
*Jan 12 02:28:28.411: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/3 Physical Port Link Down
*Jan 12 02:28:28.411: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/4, changed state to down
*Jan 12 02:28:28.412: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/4 Physical Port Link Down
*Jan 12 02:28:28.412: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/5, changed state to down
*Jan 12 02:28:28.413: %IOSXE_RP_ALARM-6-INFO: ASSERT CRITICAL GigabitEthernet0/1/5 Physical Port Link Down
*Jan 12 02:28:28.413: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/6, changed state to down
*Jan 12 02:29:33.425: %CELLWAN-5-SIM_DETECT_COMPLETE: [Cellular0/2/0]: SIM presence detection has completed !!
*Jan 12 02:29:39.427: %CELLWAN-2-SIM_NOT_PRESENT: [Cellular0/2/0]: SIM is not present in Slot 0
CRYPTO_PKI: setting trustpoint policy TP-self-signed-1543891264 to use keypair TP-self-signed-1543891264% Generating 2048 bit RSA keys, keys will be non-exportable...
*Jan 12 02:29:49.794: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named CISCO_IDEVID_SUDI has been generated or imported by pki-sudi
[OK] (elapsed time was 2 seconds)
*Jan 12 02:29:49.814: %PKI-2-NON_AUTHORITATIVE_CLOCK: PKI functions can not be initialized until an authoritative time source, like NTP, can be obtained.
*Jan 12 02:29:51.066: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-1543891264 has been generated or imported by crypto-engine
*Jan 12 02:29:51.069: %SSH-5-ENABLED: SSH 1.99 has been enabled
*Jan 12 02:29:51.146: %PKI-4-NOCONFIGAUTOSAVE: Configuration was modified. Issue "write memory" to save new IOS PKI configuration
*Jan 12 02:29:51.240: %CRYPTO_ENGINE-5-KEY_ADDITION: A key named TP-self-signed-1543891264.server has been generated or imported by crypto-engine
*Jan 12 02:30:00.270: %PKI-4-NOCONFIGAUTOSAVE: Configuration was modified. Issue "write memory" to save new IOS PKI configuration
*Jan 12 02:30:00.276: %CALL_HOME-6-CALL_HOME_ENABLED: Call-home is enabled by Smart Agent for Licensing.
*Jan 12 02:30:00.276: %SMART_LIC-5-COMM_RESTORED: Communications with the Cisco Smart Software Manager or satellite restored
*Jan 12 02:30:38.915: %CELLWAN-2-MODEM_UP: Modem in slot 0/2 is now UP
*Jan 12 02:30:39.117: %CELLWAN-2-MODEM_RADIO: Cellular0/2/0 Modem radio has been turned on
*Jan 12 02:30:41.128: %LINK-3-UPDOWN: Interface Cellular0/2/0, changed state to up
*Jan 12 02:30:42.131: %LINEPROTO-5-UPDOWN: Line protocol on Interface Cellular0/2/0, changed state to up
*Jan 12 02:30:58.429: %CELLWAN-6-CELLULAR_BACKOFF_START: Cellular0/2/0: Cellular back-off has started on PDN 0
Router>enable
Router#show version
Cisco IOS XE Software, Version 16.10.01b
Cisco IOS Software [Gibraltar], ISR Software (ARMV8EL_LINUX_IOSD-UNIVERSALK9_IAS-M), Version 16.10.1b, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2018 by Cisco Systems, Inc.
Compiled Wed 12-Dec-18 01:49 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2018 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
Router uptime is 5 minutes
Uptime for this control processor is 7 minutes
System returned to ROM by Reload Command
System image file is "bootflash:c1100-universalk9_ias.16.10.01b.SPA.bin"
Last reload reason: Reload Command
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
Suite License Information for Module:'esg'
--------------------------------------------------------------------------------
Suite Suite Current Type Suite Next reboot
--------------------------------------------------------------------------------
FoundationSuiteK9 None Smart License None
securityk9
appxk9
Technology Package License Information:
-----------------------------------------------------------------
Technology Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------
appxk9 None Smart License None
securityk9 None Smart License None
ipbase ipbasek9 Smart License ipbasek9
The current throughput level is unthrottled
Smart Licensing Status: UNREGISTERED/No Licenses in Use
cisco C1111-8PLTELA (1RU) processor with 1407249K/6147K bytes of memory.
Processor board ID FGL23491234
1 Virtual Ethernet interface
10 Gigabit Ethernet interfaces
2 Cellular interfaces
32768K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
2863103K bytes of flash memory at bootflash:.
0K bytes of WebUI ODM Files at webui:.
Configuration register is 0x2102
Router#
*Jan 12 02:33:38.602: %PNP-6-PNP_DISCOVERY_STOPPED: PnP Discovery stopped (Config Wizard)
Router#show ip interface brief
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0/0 unassigned YES unset down down
GigabitEthernet0/0/1 unassigned YES unset administratively down down
GigabitEthernet0/1/0 unassigned YES unset down down
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
GigabitEthernet0/1/4 unassigned YES unset down down
GigabitEthernet0/1/5 unassigned YES unset down down
GigabitEthernet0/1/6 unassigned YES unset down down
GigabitEthernet0/1/7 unassigned YES unset down down
Cellular0/2/0 unassigned YES TFTP up up
Cellular0/2/1 unassigned YES unset administratively down down
Vlan1 unassigned YES unset up down
Router#show run
Building configuration...
Current configuration : 6325 bytes
!
! Last configuration change at 02:33:37 UTC Sun Jan 12 2020
!
version 16.10
service timestamps debug datetime msec
service timestamps log datetime msec
! Call-home is enabled by Smart-Licensing.
service call-home
platform qfp utilization monitor load 80
no platform punt-keepalive disable-kernel-core
!
hostname Router
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
call-home
! If contact email address in call-home is configured as sch-smart-licensing@cisco.com
! the email address configured in Cisco Smart License Portal will be used as contact email address to send SCH notifications.
contact-email-addr sch-smart-licensing@cisco.com
profile "CiscoTAC-1"
active
destination transport-method http
no destination transport-method email
!
!
!
!
login on-success log
!
!
!
!
!
!
!
subscriber templating
multilink bundle-name authenticated
!
!
!
crypto pki trustpoint TP-self-signed-1543891264
enrollment selfsigned
subject-name cn=IOS-Self-Signed-Certificate-1543891264
revocation-check none
rsakeypair TP-self-signed-1543891264
!
crypto pki trustpoint SLA-TrustPoint
enrollment pkcs12
revocation-check crl
!
!
crypto pki certificate chain TP-self-signed-1543891264
certificate self-signed 01
30820330 30820218 A0030201 02020101 300D0609 2A864886 F70D0101 05050030
<OUTPUT TRUNCATED>
731BECC1 57896D74 7F235BB5 C94D3911 361B9FE2
quit
crypto pki certificate chain SLA-TrustPoint
certificate ca 01
30820321 30820209 A0030201 02020101 300D0609 2A864886 F70D0101 0B050030
<OUTPUT TRUNCATED>
D697DF7F 28
quit
!
license udi pid C1111-8PLTELA sn FGL23491234
!
diagnostic bootup level minimal
!
spanning-tree extend system-id
!
!
!
redundancy
mode none
!
controller Cellular 0/2/0
lte modem link-recovery rssi onset-threshold -110
lte modem link-recovery monitor-timer 20
lte modem link-recovery wait-timer 10
lte modem link-recovery debounce-count 6
lte modem crash-action boot-and-hold
!
!
vlan internal allocation policy ascending
!
!
!
!
!
!
interface GigabitEthernet0/0/0
no ip address
negotiation auto
!
interface GigabitEthernet0/0/1
no ip address
shutdown
negotiation auto
!
interface GigabitEthernet0/1/0
!
interface GigabitEthernet0/1/1
!
interface GigabitEthernet0/1/2
!
interface GigabitEthernet0/1/3
!
interface GigabitEthernet0/1/4
!
interface GigabitEthernet0/1/5
!
interface GigabitEthernet0/1/6
!
interface GigabitEthernet0/1/7
!
interface Cellular0/2/0
ip address negotiated
ipv6 enable
!
interface Cellular0/2/1
no ip address
shutdown
!
interface Vlan1
no ip address
!
ip forward-protocol nd
ip http server
ip http authentication local
ip http secure-server
!
!
!
!
!
!
control-plane
!
!
line con 0
exec-timeout 0 0
transport input none
stopbits 1
line vty 0 4
login
!
!
!
!
!
!
end
Router#show license ?
all Show license all information
reservation Show license reservation information
status Show license status information
summary Show license summary
tech show license tech support information
udi Show license udi information
usage Show license usage information
Router#show license all
Smart Licensing Status
======================
Smart Licensing is ENABLED
Registration:
Status: UNREGISTERED
Export-Controlled Functionality: NOT ALLOWED
License Authorization:
Status: No Licenses in Use
License Conversion:
Automatic Conversion Enabled: False
Status: Not started
Export Authorization Key:
Features Authorized:
<none>
Utility:
Status: DISABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
License Usage
==============
No licenses in use
Product Information
===================
UDI: PID:C1111-8PLTELA,SN:FGL23491234
Agent Version
=============
Smart Agent for Licensing: 4.5.10_rel/87
Component Versions: SA:(1_3_dev)1.0.15, SI:(dev22)1.2.1, CH:(rel5)1.0.3, PK:(dev18)1.0.3
Reservation Info
================
License reservation: DISABLED
You'll need a Nano-to-Micro SIM card adapter to insert the LTE SIM card. Just follow up the orientation of the SIM card or icon displayed. I used slot 0 (bottom slot) since the Cellular 0/2/0 interface is enabled/unshut by default. You can just push the SIM card again in order to eject or remove it.
Router#
*Jan 12 03:20:39.978: %CELLWAN-6-SIM_INSERTED: [Cellular0/2/0]: SIM in slot 0 has been
inserted
Router#show cellular 0/2/0 ?
all Display all the information
connection Current active connection and statistics
firmware Display list of all available f/w
fota Cellular fota status
gps Cellular gps information
hardware Cellular modem hardware information
logs Modem logging information
network Cellular network information
profile Profile information in the modem
qos Current QoS configuration and statistics
radio Cellular modem radio information
security Modem security status
sms SMS information
Router#show cellular 0/2/0 security
Active SIM = 0
SIM switchover attempts = 0
Card Holder Verification (CHV1) = Disabled
SIM Status = Not inserted
SIM User Operation Required = None
Number of CHV1 Retries remaining = 0
Router#show cellular 0/2/0 network
Current System Time = Sun Jan 12 3:23:14 2020
Current Service Status = Normal
Current Service = Packet switched
Current Roaming Status = Home
Network Selection Mode = Automatic
Network = Singtel
Mobile Country Code (MCC) = 525
Mobile Network Code (MNC) = 1
Packet switch domain(PS) state = Attached
LTE Carrier Aggregation state = Deconfigured
Registration state(EMM) = Registered
EMM Sub State = Normal Service
Tracking Area Code (TAC) = 710
Cell ID = 197293313
Network MTU = Not Available
Router#show cellular 0/2/0 radio
Radio power mode = online
LTE Rx Channel Number = 3250
LTE Tx Channel Number = 21250
LTE Band = 7
LTE Bandwidth = 20 MHz
Current RSSI = -64 dBm
Current RSRP = -101 dBm
Current RSRQ = -13 dB
Current SNR = 4.0 dB
Physical Cell Id = 393
Number of nearby cells = 4
Idx PCI (Physical Cell Id)
--------------------------------
1 393
2 142
3 171
4 138
Radio Access Technology(RAT) Preference = AUTO
Radio Access Technology(RAT) Selected = LTE
Router#show cellular 0/2/0 profile
Profile 1 = INACTIVE* **
--------
PDP Type = IPv4v6
Access Point Name (APN) =
Authentication = None
* - Default profile
** - LTE attach profile
Router#show interface cellular 0/2/0
Cellular0/2/0 is up, line protocol is up
Hardware is LTE Adv CAT6 - Multimode LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS
Internet address will be negotiated using IPCP
MTU 1500 bytes, BW 50000 Kbit/sec, DLY 20000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation HDLC, loopback not set
Keepalive not supported
Last input never, output 00:37:08, output hang never
Last clearing of "show interface" counters never
Input queue: 0/375/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/40 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
107 packets output, 7764 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 output buffer failures, 0 output buffers swapped out
0 carrier transitions
I used the same configuration for the Cisco 899 LTE router in my previous post except the encapsulation slip under the Cellular interface is not supported in the new C1100 LTE Advanced ISR. I also used no authentication (none) for the SingTel APN profile.
Router#cellular ?
<0-0> Cellular interface number
Router#cellular 0/2/0 ?
copy Copy Command
lte LTE Technology Commands
Router#cellular 0/2/0 lte ?
firmware-activate firmware activate
fota AVMS Firmware upgrade over the air
plmn PLMN Commands
prl-region View/set PRL region
profile LTE Profile management commands
sim SIM card commands
sms SMS Commands
technology LTE Technology Preferences
Router#cellular 0/2/0 lte profile ?
create Create/Edit a Profile
delete Delete a profile
Router#cellular 0/2/0 lte profile create ?
<1-16> Profile Number
Router#cellular 0/2/0 lte profile create 1 ?
WORD Access Point Name
<cr> <cr>
Router#cellular 0/2/0 lte profile create 1 e-ideas ?
chap CHAP authentication only
none No authentication
pap PAP authentication only
pap_chap PAP or CHAP authentication
<cr> <cr>
Router#cellular 0/2/0 lte profile create 1 e-ideas none ?
ipv4 IPv4 type Bearer
ipv4v6 IPV4V6 type Bearer
ipv6 IPV6 type Bearer
<cr> <cr>
Router#cellular 0/2/0 lte profile create 1 e-ideas none ipv4
Warning: You are attempting to modify the attach profile.
Connection will be reset
PDP Type = IPv4v6
Access Point Name (APN) =
Authentication = NONE
Profile 1 already exists with above parameters. Do you want to overwrite? [confirm]
Profile 1 will be overwritten with the following values:
PDP type = IPv4
APN = e-ideas
Authentication = NONE
Are you sure? [confirm]
Profile 1 written to modem
*Jan 12 03:38:07.825: %CELLWAN-2-MODEM_RADIO: Cellular0/2/0 Modem radio has been turned off
*Jan 12 03:38:08.025: %CELLWAN-2-MODEM_RADIO: Cellular0/2/0 Modem radio has been turned on
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface Cellular0/2/0
Router(config-if)# ip address negotiated ip address ?
A.B.C.D IP address
negotiated IP Address negotiated over PPP
pool IP Address autoconfigured from a local DHCP pool
slarp Set IP address through SLARP
Router(config-if)#ip address negotiated
Router(config-if)#encapsulation slip
^
% Invalid input detected at '^' marker.
Router(config-if)#encapsulation ?
arpa Standard Ethernet version 2.0
atm-dxi ATM-DXI encapsulation
frame-relay Frame Relay networks
hdlc Serial HDLC synchronous
lapb LAPB (X.25 Level 2)
ppp Point-to-Point protocol
smds Switched Megabit Data Service (SMDS)
x25 X.25
Router(config-if)#ip nat ?
allow-static-host Allow static-ip clients
enable Enable interface for address translation
inside Inside interface for address translation
outside Outside interface for address translation
Router(config-if)#ip nat outside
Router(config-if)#dialer ?
callback-secure Enable callback security
disable-multiencaps Disable Multi-Encaps for ISDN
down-with-vInterface Bring down Dialer when Virtual interface is down
dtr Set DTR dialing for interface
enable-timeout Set length of time an interface stays down before it
is available for dialing
fast-idle Set idle time before disconnecting line with an
unusually high level of contention
hold-queue Configure output hold queue
idle-timeout Specify idle timeout before disconnecting line
in-band Set v.25bis dialing for interface
leased Leased/Non-Dial link
map Define multiple dial-on-demand numbers
mult-map-same-name Multiple maps same remote name
order Specify order of choosing dialstrings
pool-member Specify dialer pool membership
pppoe-client-vlan-cos set dot1p cos value in pppoe control packets
priority Specify priority for use in dialer group
redial Configure redial for this interface
rotary-group Add to a dialer rotary group
snapshot Enable snapshot address for dialer profile
vpdn Enable vpdn dial
wait-for-carrier-time How long the router will wait for carrier
wait-for-line-protocol Time the router will wait for the line protocol to
come up
watch-disable Time to wait before bringing down watched route link
watch-group Assign interface to dialer-watch-list
Router(config-if)#dialer in-band
Router(config-if)#dialer idle-timeout ?
<0-2147483> Idle timeout before disconnecting a call
Router(config-if)#dialer idle-timeout 0
Router(config-if)#dialer-group ?
<1-128> Dialer list number
Router(config-if)#dialer-group 1
Router(config-if)#exit
Router(config)#
Router(config-if)#interface GigabitEthernet0/0/0
Router(config-if)# ip address 192.168.1.1 255.255.255.0
Router(config-if)# ip nat inside
Router(config-if)#exit
Router(config)#ip route 0.0.0.0 0.0.0.0 Cellular0/2/0
Router(config)#access-list 1 permit 192.168.1.0 0.0.0.255
Router(config)#ip nat inside source list 1 interface Cellular0/2/0 overload
Router(config)#dialer-list 1 ?
protocol Permit or Deny based on protocols
Router(config)#dialer-list 1 protocol ?
bridge Bridging
clns OSI Connectionless Network Service
clns_es CLNS End System
clns_is CLNS Intermediate System
ip IP
ipv6 IPv6
llc2 LLC2
xns XNS
Router(config)#dialer-list 1 protocol ip ?
deny Deny specified protocol
list Add access list to dialer list
permit Permit specified protocol
Router(config)#dialer-list 1 protocol ip permit
Router(config)#end
Router#
*Jan 12 03:26:48.922: %SYS-5-CONFIG_I: Configured from console by console
Router#show run
Building configuration...
Current configuration : 6624 bytes
!
! Last configuration change at 03:26:48 UTC Sun Jan 12 2020
!
version 16.10
service timestamps debug datetime msec
service timestamps log datetime msec
! Call-home is enabled by Smart-Licensing.
service call-home
platform qfp utilization monitor load 80
no platform punt-keepalive disable-kernel-core
!
hostname Router
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
call-home
! If contact email address in call-home is configured as sch-smart-licensing@cisco.com
! the email address configured in Cisco Smart License Portal will be used as contact email address to send SCH notifications.
contact-email-addr sch-smart-licensing@cisco.com
profile "CiscoTAC-1"
active
destination transport-method http
no destination transport-method email
!
!
!
!
login on-success log
!
!
!
!
!
!
!
subscriber templating
multilink bundle-name authenticated
!
!
!
crypto pki trustpoint TP-self-signed-1543891264
enrollment selfsigned
subject-name cn=IOS-Self-Signed-Certificate-1543891264
revocation-check none
rsakeypair TP-self-signed-1543891264
!
crypto pki trustpoint SLA-TrustPoint
enrollment pkcs12
revocation-check crl
!
!
crypto pki certificate chain TP-self-signed-1543891264
certificate self-signed 01
30820330 30820218 A0030201 02020101 300D0609 2A864886 F70D0101 05050030
<OUTPUT TRUNCATED>
731BECC1 57896D74 7F235BB5 C94D3911 361B9FE2
quit
crypto pki certificate chain SLA-TrustPoint
certificate ca 01
30820321 30820209 A0030201 02020101 300D0609 2A864886 F70D0101 0B050030
<OUTPUT TRUNCATED>
D697DF7F 28
quit
!
license udi pid C1111-8PLTELA sn FGL23491234
!
diagnostic bootup level minimal
!
spanning-tree extend system-id
!
!
!
redundancy
mode none
!
controller Cellular 0/2/0
lte modem link-recovery rssi onset-threshold -110
lte modem link-recovery monitor-timer 20
lte modem link-recovery wait-timer 10
lte modem link-recovery debounce-count 6
lte modem crash-action boot-and-hold
!
!
vlan internal allocation policy ascending
!
!
!
!
!
!
interface GigabitEthernet0/0/0
ip address 192.168.1.1 255.255.255.0
ip nat inside
negotiation auto
!
interface GigabitEthernet0/0/1
no ip address
shutdown
negotiation auto
!
interface GigabitEthernet0/1/0
!
interface GigabitEthernet0/1/1
!
interface GigabitEthernet0/1/2
!
interface GigabitEthernet0/1/3
!
interface GigabitEthernet0/1/4
!
interface GigabitEthernet0/1/5
!
interface GigabitEthernet0/1/6
!
interface GigabitEthernet0/1/7
!
interface Cellular0/2/0
ip address negotiated
ip nat outside
dialer in-band
dialer idle-timeout 0
dialer-group 1
ipv6 enable
pulse-time 1
!
interface Cellular0/2/1
no ip address
shutdown
!
interface Vlan1
no ip address
!
ip forward-protocol nd
ip http server
ip http authentication local
ip http secure-server
ip nat inside source list 1 interface Cellular0/2/0 overload
ip route 0.0.0.0 0.0.0.0 Cellular0/2/0
!
!
access-list 1 permit 192.168.1.0 0.0.0.255
dialer-list 1 protocol ip permit
!
!
!
!
control-plane
!
!
line con 0
exec-timeout 0 0
transport input none
stopbits 1
line vty 0 4
login
!
!
!
!
!
!
end
Router#debug chat
Chat scripts activity debugging is on
Router#debug modem
Modem control/process activation debugging is on
Router#debug dialer
Dial on demand events debugging is on
Router#debug cellular 0/2/0 messages callcontrol
CALLCONTROL debugging is on
Router#ping 8.8.8.8
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/34/48 ms
Router#
*Jan 12 03:38:08.032: TTY866: EXEC creation
*Jan 12 03:38:09.300: Ce0/2/0 DDR: place call
*Jan 12 03:38:09.300: Ce0/2/0 DDR: Dialing cause ip (s=0.0.0.0, d=255.255.255.255)
*Jan 12 03:38:09.300: Ce0/2/0 DDR: Attempting to dial lte
*Jan 12 03:38:09.300: back off timer is not running for PDN 0
*Jan 12 03:38:09.300: api_manage_packet_session: Cellular0/2/0 profile 255 activate 1
*Jan 12 03:38:09.302: TTY866: Error setting method list for stop
*Jan 12 03:38:09.302: TTY866: Line reset by "Virtual Exec"
*Jan 12 03:38:09.302: TTY866: Modem: (unknown)->READY
*Jan 12 03:38:09.302: TTY866: no timer type 0 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 1 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 3 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 4 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 10 to destroy
*Jan 12 03:38:09.302: TTY866: no timer type 2 to destroy
*Jan 12 03:38:10.282: Cellular0/2/0: pdn:0 status:3
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: instance id:0 profile:0 status:1
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: Cellular0/2/0 instance_id 0 profile_id 0
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: active_status[1],ipfamily[4]
*Jan 12 03:38:12.280: cellwan_api_pkt_session_notify: active_status[1],ipfamily[4]ipv4status[1],ipv6status[0]
*Jan 12 03:38:12.280: handle_call_history: new and old status the same 1
*Jan 12 03:38:12.280: cellular_update_profile_id_for_latest_call_setup: Cellular0/2/0 profile_id 1, active_status 1, pdn 0
*Jan 12 03:38:12.280: cellular_update_profile_id_for_latest_call_setup: pending_idb: Cellular0/2/0
*Jan 12 03:38:12.280: subuint 0 profile_id 1
*Jan 12 03:38:12.281: cellwan_api_pkt_session_notify: session status 1
*Jan 12 03:38:12.396: cellwan_api_handle_profile_ip_addr_get_resp pdn 0 valid 1 ipv4 length 4 ipv6 prefix length 0, session active 1, profile:0
*Jan 12 03:38:12.396: IPV4 Address =
*Jan 12 03:38:12.396: cellwan_api_handle_profile_ip_addr_get_resp: Lineaction Cellular0/2/0
*Jan 12 03:38:12.396: cellular_dip_ip_address_negotiated: Found profile ID 1 for Cellular0/2/0
*Jan 12 03:38:12.396: Cellular0/2/0 DirectIP: Install negotiated IP interface address 10.236.100.163
*Jan 12 03:38:12.401: cellular_line_protocol_up: Cellular0/2/0
*Jan 12 03:38:12.402: Reset back off for PDN 0
*Jan 12 03:38:12.402: %CELLWAN-6-CELLULAR_BACKOFF_STOP: Cellular0/2/0: Cellular back-off has stopped on PDN 0
*Jan 12 03:38:12.402: Ce0/2/0 DDR: dialer protocol up
*Jan 12 03:38:12.432: Cellular0/2/0 DirectIP: Primary DNS address 165.21.83.88 added
*Jan 12 03:38:12.432: Cellular0/2/0 DirectIP: Secondary DNS 165.21.100.88 added
*Jan 12 03:38:12.419: %FMFP-3-OBJ_DWNLD_TO_DP_FAILED: R0/0: fman_fp_image: PORTLIST: (tcp/10.236.100.163 port 5062 - 6085) download to DP failed
*Jan 12 03:38:22.626: Ce0/2/0 DDR: re-enable timeout
Router#show cellular 0/2/0 profile
Profile 1 = ACTIVE* **
--------
PDP Type = IPv4
PDP address = 10.236.100.163
Access Point Name (APN) = e-ideas
Authentication = None
Primary DNS address = 165.21.83.88
Secondary DNS address = 165.21.100.88
* - Default profile
** - LTE attach profile
Configured default profile for active SIM 0 is profile 1.
Router#show interface cellular 0/2/0
Cellular0/2/0 is up, line protocol is up
Hardware is LTE Adv CAT6 - Multimode LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS
Internet address is 10.236.100.163/32
MTU 1500 bytes, BW 50000 Kbit/sec, DLY 20000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation HDLC, loopback not set
Keepalive not supported
DTR is pulsed for 1 seconds on reset
Last input 00:01:00, output 00:01:00, output hang never
Last clearing of "show interface" counters never
Input queue: 0/375/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/40 (size/max)
5 minute input rate 110000 bits/sec, 1 packets/sec
5 minute output rate 2000 bits/sec, 1 packets/sec
6112 packets input, 6910782 bytes, 0 no buffer
Received 0 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
3970 packets output, 693078 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 output buffer failures, 0 output buffers swapped out
Router#ping 8.8.8.8 source 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 192.168.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/48/112 ms
Router#show ip interface b rief
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0/0 192.168.1.1 YES manual up up
GigabitEthernet0/0/1 unassigned YES unset administratively down down
GigabitEthernet0/1/0 unassigned YES unset down down
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
GigabitEthernet0/1/4 unassigned YES unset down down
GigabitEthernet0/1/5 unassigned YES unset down down
GigabitEthernet0/1/6 unassigned YES unset down down
GigabitEthernet0/1/7 unassigned YES unset down down
Cellular0/2/0 10.236.100.163 YES IPCP up up
Cellular0/2/1 unassigned YES unset administratively down down
Vlan1 unassigned YES unset up down
You can also use the built-in 8-port switch (Layer 2 only) for connnecting multiple LAN clients. I just moved the Layer 3 IP address from G0/0/0 to SVI 1.
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface GigabitEthernet0/0/0
Router(config-if)#no ip address
Router(config-if)#no ip nat inside
Router(config-if)#exit
Router(config)#interface vlan1
Router(config-if)# ip address 192.168.1.1 255.255.255.0
Router(config-if)# ip nat inside
Router(config-if)#end
Router#
*Jan 12 03:46:45.939: %SYS-5-CONFIG_I: Configured from console by console
Router#
*Jan 12 03:47:10.164: %LINK-3-UPDOWN: Interface GigabitEthernet0/0/0, changed state to down
*Jan 12 03:47:11.167: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/0/0, changed state to down
*Jan 12 03:47:32.967: %LINK-3-UPDOWN: Interface GigabitEthernet0/1/0, changed state to up
*Jan 12 03:47:33.965: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1/0, changed state to up
*Jan 12 03:47:33.970: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to up
Router#show ip interface brief
Interface IP-Address OK? Method Status Protocol
GigabitEthernet0/0/0 unassigned YES manual down down
GigabitEthernet0/0/1 unassigned YES unset administratively down down
GigabitEthernet0/1/0 unassigned YES unset up up // LAPTOP CONNECTED
GigabitEthernet0/1/1 unassigned YES unset down down
GigabitEthernet0/1/2 unassigned YES unset down down
GigabitEthernet0/1/3 unassigned YES unset down down
GigabitEthernet0/1/4 unassigned YES unset down down
GigabitEthernet0/1/5 unassigned YES unset down down
GigabitEthernet0/1/6 unassigned YES unset down down
GigabitEthernet0/1/7 unassigned YES unset down down
Cellular0/2/0 10.236.100.163 YES IPCP up up
Cellular0/2/1 unassigned YES unset administratively down down
Vlan1 192.168.1.1 YES manual up up
The inherent latency on LTE to the Internet (Google DNS 8.8.8.8) is a bit higher compared to a wired or wireless connection. The network throughput (download/upload speed) is reasonable enough to be used in a SOHO/remote site (or in a retail store) with a good LTE coverage.
Router#ping 8.8.8.8 source 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 8.8.8.8, timeout is 2 seconds:
Packet sent with a source address of 192.168.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 16/23/32 ms
