Cisco DevNet Sandbox Free Virtual Lab

The Cisco DevNet Sandbox is a free online tool where you can test and develop various Cisco technologies, i.e. Cloud, Security, SD WAN, etc. without owning or setup any Cisco hardware or virtual server. You just register or use your existing CCO login.

There are a lot of Sandbox virtual labs to choose from. This is useful if you need to test a new IOS-XE or NX-OS feature without blowing up your production network. You can also do a Proof of Concept (POC) or Proof of Value (POV) without having to ask from your Cisco Account Manager for a loan hardware. It's also a great learning tool for those studying their Cisco certifications, i.e. CCNA, CCNP, etc.


Click a specific Sandbox Lab. In this case I chose the Cisco Modeling Labs (CML) Enterprise > click Reserve.

The Sandbox lab setup takes around 10 minutes to complete. You can check the time left on the Setup green icon on the top right corner. You'll receive an email about the Sandbox lab chosen and a download link for the Cisco AnyConnect VPN client software installer. I used Cisco AnyConnect version 4.x in my laptop.

Once the Setup is finished, the Sandbox Setup changed to Active (top right) and nodes will have a green dot. You'll also receive another email informing the Sandbox lab is ready and gives you a temporary username/password login.


Copy/paste the AnyConnect VPN address/URL > click Connect > type the username and password provided in the email.

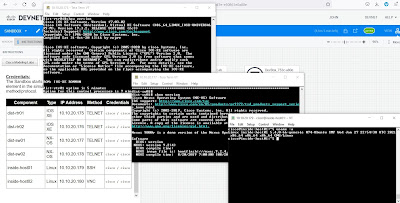

Open an SSH client > select the Service: Telnet > type the Sandbox component IP address > click OK. I used TeraTerm in this case.


There's also a PDF network diagram you can view or download in the Instructions section.

dist-rtr01#show version

Cisco IOS XE Software, Version 17.03.02

Cisco IOS Software [Amsterdam], Virtual XE Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 17.3.2, RELEASE SOFTWARE (fc3)

Technical Support: http://www.cisco.com/techsupport

Copyright (c) 1986-2020 by Cisco Systems, Inc.

Compiled Sat 31-Oct-20 13:16 by mcpre





Cisco IOS-XE software, Copyright (c) 2005-2020 by cisco Systems, Inc.

All rights reserved.  Certain components of Cisco IOS-XE software are

licensed under the GNU General Public License ("GPL") Version 2.0.  The

software code licensed under GPL Version 2.0 is free software that comes

with ABSOLUTELY NO WARRANTY.  You can redistribute and/or modify such

GPL code under the terms of GPL Version 2.0.  For more details, see the

documentation or "License Notice" file accompanying the IOS-XE software,

or the applicable URL provided on the flyer accompanying the IOS-XE

software.





ROM: IOS-XE ROMMON



dist-rtr01 uptime is 5 minutes

Uptime for this control processor is 7 minutes

System returned to ROM by reload

System image file is "bootflash:packages.conf"

Last reload reason: factory-reset





This product contains cryptographic features and is subject to United

States and local country laws governing import, export, transfer and

use. Delivery of Cisco cryptographic products does not imply

third-party authority to import, export, distribute or use encryption.

Importers, exporters, distributors and users are responsible for

compliance with U.S. and local country laws. By using this product you

agree to comply with applicable laws and regulations. If you are unable

to comply with U.S. and local laws, return this product immediately.



A summary of U.S. laws governing Cisco cryptographic products may be found at:

http://www.cisco.com/wwl/export/crypto/tool/stqrg.html



If you require further assistance please contact us by sending email to

export@cisco.com.



License Level: ax

License Type: N/A(Smart License Enabled)

Next reload license Level: ax



The current throughput level is 1000 kbps





Smart Licensing Status: UNREGISTERED/No Licenses in Use



cisco CSR1000V (VXE) processor (revision VXE) with 1105351K/3075K bytes of memory.

Processor board ID 9LFWOLT44MQ

Router operating mode: Autonomous

6 Gigabit Ethernet interfaces

32768K bytes of non-volatile configuration memory.

3012036K bytes of physical memory.

6188032K bytes of virtual hard disk at bootflash:.



Configuration register is 0x2102





dist-rtr01#show ip interface brief

Interface              IP-Address      OK? Method Status                Protocol

GigabitEthernet1       10.10.20.175    YES TFTP   up                    up

GigabitEthernet2       172.16.252.21   YES TFTP   up                    up

GigabitEthernet3       172.16.252.25   YES TFTP   up                    up

GigabitEthernet4       172.16.252.2    YES TFTP   up                    up

GigabitEthernet5       172.16.252.10   YES TFTP   up                    up

GigabitEthernet6       172.16.252.17   YES TFTP   up                    up

Loopback0              unassigned      YES unset  administratively down down





dist-rtr01#show ip route

Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP

       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP

       n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

       ia - IS-IS inter area, * - candidate default, U - per-user static route

       H - NHRP, G - NHRP registered, g - NHRP registration summary

       o - ODR, P - periodic downloaded static route, l - LISP

       a - application route

       + - replicated route, % - next hop override, p - overrides from PfR

       & - replicated local route overrides by connected



Gateway of last resort is not set



      172.16.0.0/16 is variably subnetted, 19 subnets, 3 masks

O        172.16.101.0/24 [110/41] via 172.16.252.9, 00:07:16, GigabitEthernet5

                         [110/41] via 172.16.252.1, 00:09:37, GigabitEthernet4

O        172.16.102.0/24 [110/41] via 172.16.252.9, 00:09:26, GigabitEthernet5

                         [110/41] via 172.16.252.1, 00:07:16, GigabitEthernet4

O        172.16.103.0/24 [110/41] via 172.16.252.9, 00:07:11, GigabitEthernet5

                         [110/41] via 172.16.252.1, 00:07:16, GigabitEthernet4

O        172.16.104.0/24 [110/41] via 172.16.252.9, 00:07:11, GigabitEthernet5

                         [110/41] via 172.16.252.1, 00:07:16, GigabitEthernet4

O        172.16.105.0/24 [110/41] via 172.16.252.9, 00:07:11, GigabitEthernet5

                         [110/41] via 172.16.252.1, 00:07:16, GigabitEthernet4

C        172.16.252.0/30 is directly connected, GigabitEthernet4

L        172.16.252.2/32 is directly connected, GigabitEthernet4

O        172.16.252.4/30 [110/2] via 172.16.252.18, 00:11:04, GigabitEthernet6

C        172.16.252.8/30 is directly connected, GigabitEthernet5

L        172.16.252.10/32 is directly connected, GigabitEthernet5

O        172.16.252.12/30

           [110/2] via 172.16.252.18, 00:11:04, GigabitEthernet6

C        172.16.252.16/30 is directly connected, GigabitEthernet6

L        172.16.252.17/32 is directly connected, GigabitEthernet6

C        172.16.252.20/30 is directly connected, GigabitEthernet2

L        172.16.252.21/32 is directly connected, GigabitEthernet2

C        172.16.252.24/30 is directly connected, GigabitEthernet3

L        172.16.252.25/32 is directly connected, GigabitEthernet3

O        172.16.252.28/30

           [110/2] via 172.16.252.18, 00:11:04, GigabitEthernet6

O        172.16.252.32/30

           [110/2] via 172.16.252.18, 00:11:04, GigabitEthernet6



Once you're finished, click End (stop hand icon on top right).

To clear the cached VPN address, go to Cisco AnyConnect Security Mobility Client folder:

C:\ProgramData\Cisco\Cisco AnyConnect Secure Mobility Client


Select preferences_global (an XML file) > delete.

You can verify the content of the XML file by opening it in Notepad. Notice it has the Cisco Sandbox URL and public IP address.
